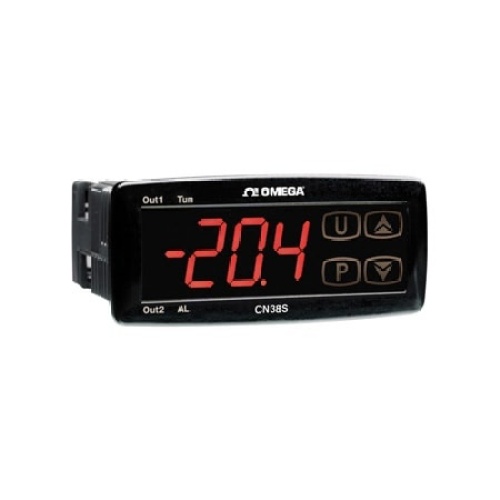

Omega CN38S-TC-DC1-R2 TEMPERATURE CONTROLLER
Normally In Stock
Code: 775727
Omega CN38S-TC-DC1-R2 TEMPERATURE CONTROLLER
Condition: New
Usually ships Same Day or Next Day$380.80
Sale Price
$317.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Temperature Controller, Temperature, J, K Type T/C, 1 I/P, DC pulse/Relay, 2 O/P, 1/8 DIN, AC, 100 V to 240 V, 4 Digit Single Display, CN38S, Each
Specifications
(Instrument-Sensor) IP Protection
IP65
Component
Temperature Controller
Manufacturer
Omega Engineering
(Instrument-Sensor) Supply Voltage
100 - 240 Vac/Vdc
Features
Easy Programming
Input for Thermocouple, RTD and Thermistor
Resolution 0.1°C with Automatic Scale Change (Auto-Ranging)
“Sensitive Touch” Keypad
Accuracy± 0.5 %
Accuracy Detail± (0.5% span ± 1 digit @25 °C
Additional Features 1°C or °F programmable
Category of OvervoltageII
DC PulseIsolation: Output NOT isolated as regard the very low voltage parts
Logic State: 1: 12V ± 20% @ 1 mA, 10V ± 20%
@ 20 mA
Logic State 0: <0.5V
Device ClassClass II
Display Size47 mm (1.9 in)
Display Type3 Digit LED
Display Type Note3-digit single display, red, 12 mm (0.47")
Display Updating Time1 s
Electrical ConnectionScrew Terminal
Enclosure RatingsIP65
Enclosure Ratings NoteFront Protection: IP 65 (with gasket) according to EN60070-1 for indoor use
Screw Terminal: IP20
Form factor1/8 DIN
Height78 mm
IsolationReinforced isolation between low voltage (input and output relay) and frontal parts
reinforced isolation between low voltage and very low voltage parts (inputs, static outputs)
Length64 mm
Measurement TypeTemperature
MountingFlush in panel
Nominal Pulse Voltage2.5 KV
Number of Control Outputs2
Number of Inputs1
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Relative Humidity< 95 RH% without condensation
Sampling Rate1 Hz (1 update/second)
Storage Temperature, Max60 °C
Storage Temperature, Min-25 °C
Weight180 g
Width35 mm
