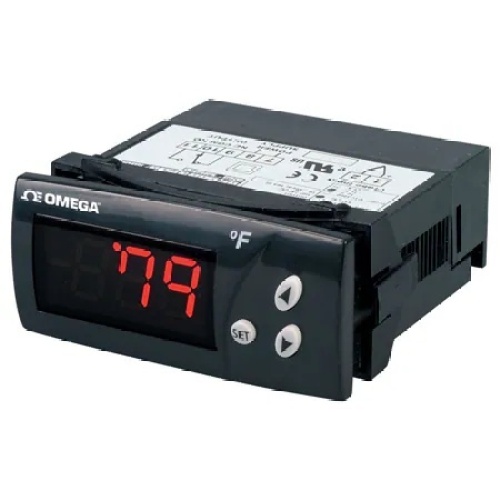

Omega DP7003 TEMPERATURE PANEL METER
Normally In Stock
Code: 775724
Omega DP7003 TEMPERATURE PANEL METER
Condition: New
Usually ships Same Day or Next Day$220.91
Sale Price
$184.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Temperature Panel Meter, Alarm/On/Off Control & Audible Buzzer, Thermocouple I/P, 32 °F to 999 °F, 3 Digit, Bright Red Color LED Display, 230 Vac Supply, 1 Relay Alarm O/P, DP7000 Series, Each
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP64
(Instrument-Sensor) Supply Voltage
230 VAC
Component
Temperature Panel Meter
Manufacturer
Omega Engineering
Features
Bright-Red, 3-Digit LED Display
J or K Thermocouple Inputs
16 A Relay Output
Simple On/Off Control or Alarm
Accuracy± 1 %
Alloy Material (-)Alumel
Alloy Material (+)Chromel
Control TypeOn/Off
Display NoteThree 12.7 mm (1/2") red digits, plus sign
update rate: 1, 2, 4 or 8 sec (adjustable)
Display Size12.7 mm (0.50 in)
Display Type3 Digit LED
Enclosure RatingsIP64, NEMA Type 4X
Form factor2.79 in x 1.14 in
Horsepower Rating1 hp
Measurement TypeTemperature
Memory BackupNon-Volatile
Number of Inputs1
Operating Temperature, Max70 °C
Operating Temperature, Min0 °C
Power Consumption4 VA
Relay Output16 A SPDT
Relay Output Note16 A SPDT @ 240 Vac
Resolution1°
Samples,Max1 Hz
Storage Temperature, Max80 °C
Storage Temperature, Min-20 °C
Supply Power Note115 Vac, 230 Vac, 12 Vac/Vdc or 24 Vac/Vdc (depending on model)
Temperature Measurement RangeJ: 0 to 999°C, K: 0 to 999°C
Temperature Sensor TypeThermocouple
Thermocouple TypeJ, K
Weight65 g
