Code: 765674

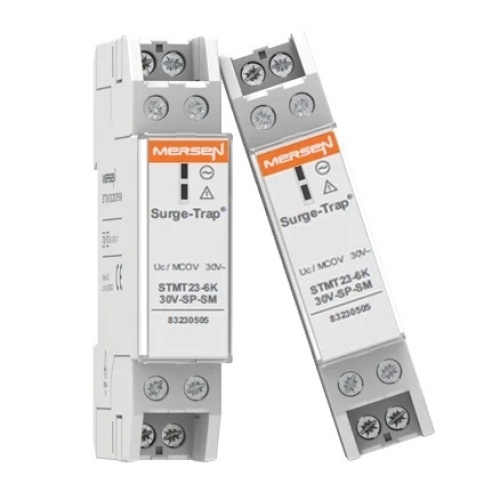

Mersen 83230505 Surge Protection Device Type 2+3, 6kA Imax (8/20), 1Ph+N, 24/-V, Slim, SP TT/TNS, 2 Poles, Monobloc, 1 Module, Remote indication
Normally In Stock
Mersen 83230505 Surge Protection Device Type 2+3, 6kA Imax (8/20), 1Ph+N, 24/-V, Slim, SP TT/TNS, 2 Poles, Monobloc, 1 Module, Remote indication
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$450.25
Sale Price
$375.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mersen’s Surge Trap STMT Series features low voltage surge protective devices suitable for both AC and DC voltage applications. This series is ideal for the protection of controls, power supplies, communication systems, and other sensitive equipment. With a slim design, these DIN-rail mount SPDs are ideal for limited space applications. The series is suitable for operating voltages of 12-230 VAC and 24-365 VDC and offers an optional dry contact feature for remote monitoring.
Specifications
Manufacturer
Mersen
Component
Surge Protection Device
Surge Protector Mount
DIN Rail
Features
Maximum discharge current (8/20μs): 6kA – 20kA
Nominal discharge current (8/20μs): 3kA – 10kA
Combined voltage pulse (1.2/50μs): 10kV, 6kV
Single phase networks
Un: 12V, 24V, 48V, 60V, 120V, 230V
Typically for use also in the corresponding DC voltages
DIN-rail mountable, monobloc format
Visual (LED) and remote end of life indicators
Power status (LED) indicator
Space saving “slim” format
Back-up fuse IEC: 63A gG)
