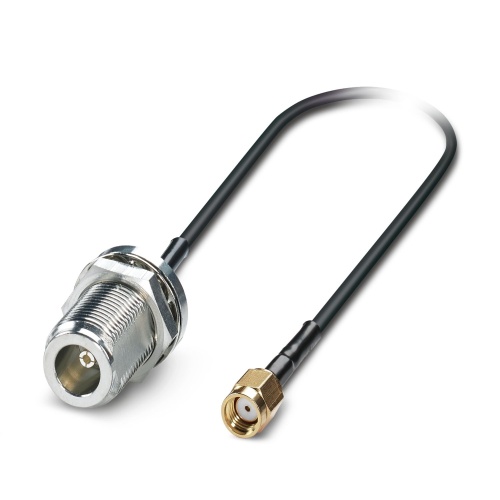

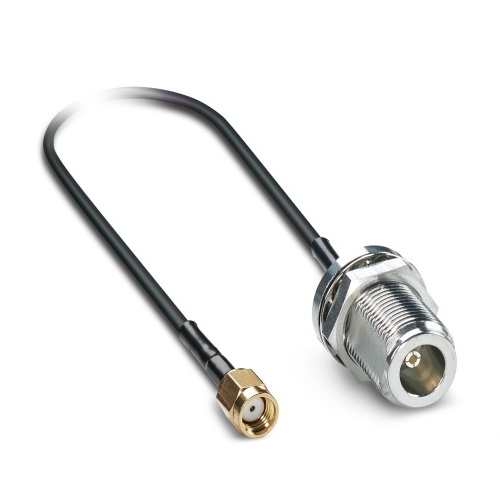

Phoenix Contact 1340129 Coaxial cable NBC-COX-CNB/0.5-S/COX-CLM
Normally In Stock
Code: 764471
Phoenix Contact NBC-COX-CNB/0.5-S/COX-CLM - Coaxial cable, 50 Ω, length: 0.5 m, N(f) BH - RSMA(m), external cable diameter: 2.8 mm, transmission frequency: ≤7.25 GHz, typical attenuation: 800 MHz 0.4 dB, 2.4 GHz 0.7 dB, 5.8 GHz 1.1 dB, 7.25 GHz 1.5 dB - 1340129
Condition: New
Usually ships Same Day or Next Day $56.52
Sale Price
$47.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1340129 A coaxial cable with a characteristic impedance of 50 Ω has a specific physical configuration, including an external diameter of 2.8 mm and a length of 0.5 m, suitable for operation within the frequency range up to 7.25 GHz, while also featuring typical attenuation values at different frequencies: 800 MHz with an attenuation of approximately 0.4 dB, 2.4 GHz with 0.7 dB, 5.8 GHz with 1.1 dB, and 7.25 GHz with a corresponding attenuation of 1.5 dB.
Specifications
Color
Black
Cable Shielding
Shielded
Component
Data Cable Preassembled
Manufacturer
Phoenix Contact
Jacket Type
FRNC
Features
Future-proof, thanks to the use of lead-free materials
Ideal for WLAN, Bluetooth, LTE, and 5G signals
The frequency range up to 7.25 GHz enables the use of high Wi-Fi 6 and 5G frequency bands
Use of UV-resistant LSZH cable enables use in virtually all industrial field communication applications
