Code: 76220

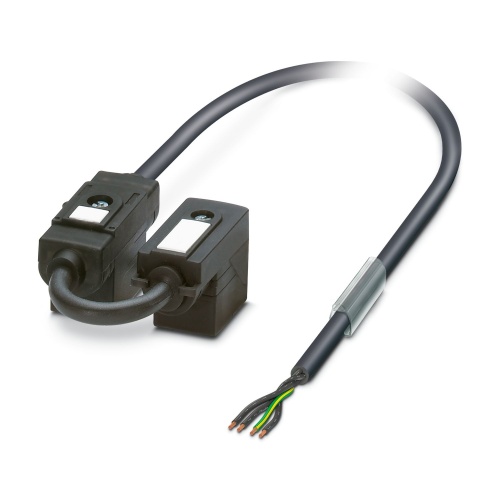

Phoenix Contact 1458185 Double valve connector cable SAC- 5,0/0,1-116/2XB-1L-Z
Normally In Stock
Phoenix 1458185 PVC,PUR,Black 5 m Free Cable End 4-position Double valve connector cable
Condition: New
Usually ships Same Day or Next Day$63.98
Sale Price
$53.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

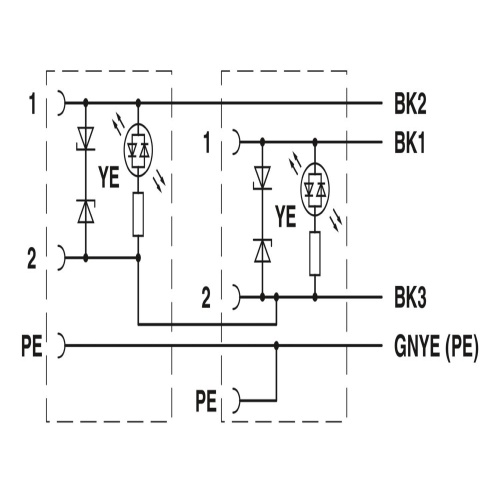

Phoenix Contact 1458185 The cable in question is a double valve connector cable with specific features: it has a 4-position configuration made from PUR/PVC material, is black in color and has one free end, specifically attached to Valve connector B with a 10mm diameter. The cable also includes an integrated LED light source, and its wiring consists of two separate paths connected via Z diodes, which are linked to another Valve connector B with a 10mm diameter. The overall length of the cable is 5 meters, while the distance between valve connectors is spaced at 0.1 meters apart.
Specifications
Cable Head 1 Design
Free Cable End
Cable Number of Positions
4-Position
Cable Valve Connector Design
Valve Connector C
Cable Number of Valve Plugs
2
Status Indicator
Status Indicator
Manufacturer
Phoenix Contact
Component
Sensor-Actuator Cable With Valve Connector
Cable Length
5 M
Cable Material
PVC
Cable Material
PUR
Features
Efficient: control valves with two connections via a single connecting cable
Convenient: increased machine availability thanks to quick and easy diagnostics
Easy and safe: 100 % electrically tested plug-in components
