Phoenix Contact 1416953 Bus system cable SAC-5P-MINMR/ 5,0-U30
Normally In Stock
Code: 75084
Phoenix 1416953 PVC,Gray 5 m Plug Angled 7/8"-16UNF Free Cable End 5-position A - standard Anodized aluminum Bus system cable
Condition: New
Usually ships Same Day or Next Day$51.60
Sale Price
$43.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

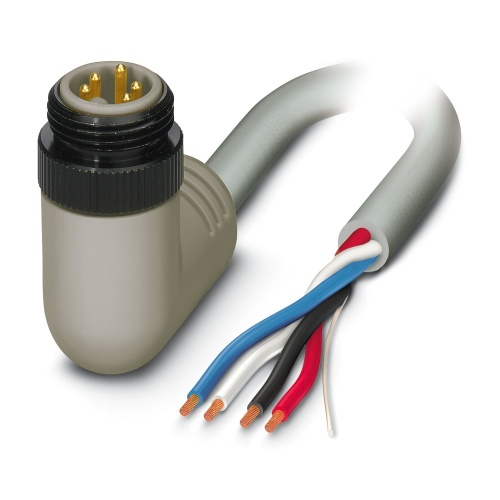

Phoenix Contact 1416953 The bus system cable is a 5-position device with a PVC exterior in a gray color and an angled 7/8"-16UNF plug on one end. The cable is coded as "A" and features a length of 5 meters.
Specifications
Cable Coding
A - Standard
Cable Number of Positions
5-Position
Cable Head 2 Design
Free Cable End
Cable Head 1 Design
Plug Angled 7-8"-16UNF
Cable Knurl Material
Anodized Aluminum
Manufacturer
Phoenix Contact
Component
Sensor-Actuator Cable
Cable Length
5 M
Cable Material
PVC
Features
Numerous sizes and high numbers of positions – from M8 to M40 as well as 1/2″ and 7/8″ and up to 17 positions in one connector
Quick and reliable connection, even in confined spaces, with M12 push-pull connectors
Advanced Shielding Technology provides a totally protected and reliable shield connection under extreme environmental conditions
Safe, efficient control of electromagnetic hydraulic and pneumatic valves with preassembled valve connectors
Perfectly fitting cabling with customer-specific versions starting from a batch size of 1
