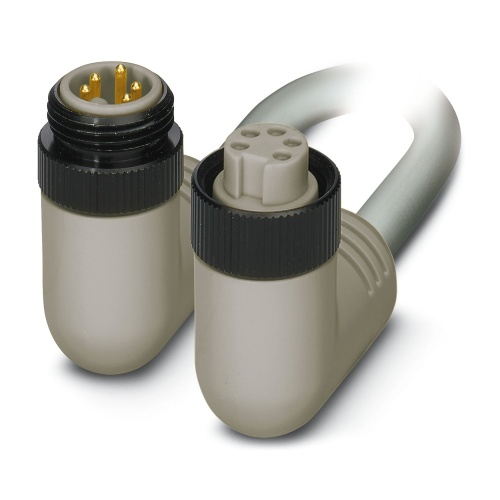

Phoenix Contact 1416945 Bus system cable SAC-5P-MINMR/15,0-U30/MINFR
Normally In Stock
Code: 74558
Phoenix 1416945 PVC,Gray 15 m Plug Angled 7/8"-16UNF Socket Angled 7/8"-16UNF 5-position A - standard Anodized aluminum Bus system cable
Condition: New
Usually ships Same Day or Next Day$136.45
Sale Price
$113.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1416945 A bus system cable with a 5-position connector is made of PVC and has an angled 7/8"-16UNF plug with coding A. The socket has the same angled 7/8"-16UNF configuration with coding A, and the overall cable length is 15 meters.
Specifications
Cable Coding
A - Standard
Cable Number of Positions
5-Position
Cable Head 1 Design
Plug Angled 7-8"-16UNF
Cable Head 2 Design
Socket Angled 7-8"-16UNF
Cable Knurl Material
Anodized Aluminum
Manufacturer
Phoenix Contact
Component
Sensor-Actuator Cable
Cable Length
15 M
Cable Material
PVC
Features
Numerous sizes and high numbers of positions – from M8 to M40 as well as 1/2″ and 7/8″ and up to 17 positions in one connector
Quick and reliable connection, even in confined spaces, with M12 push-pull connectors
Advanced Shielding Technology provides a totally protected and reliable shield connection under extreme environmental conditions
Safe, efficient control of electromagnetic hydraulic and pneumatic valves with preassembled valve connectors
Perfectly fitting cabling with customer-specific versions starting from a batch size of 1
