Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

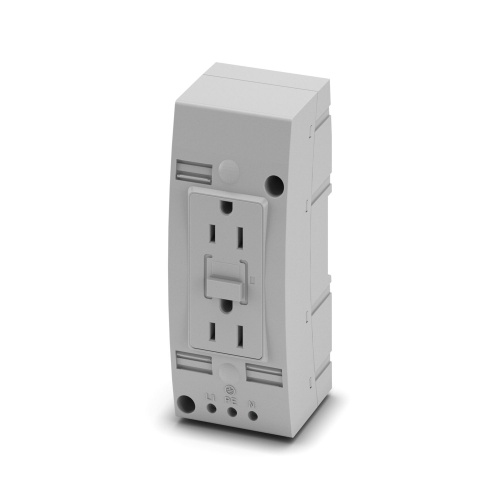

Phoenix Contact 1263628 Double socket EO-AB/UT/LED/DUO/V/GFI/15
Normally In Stock
Code: 738518
Phoenix Contact EO-AB/UT/LED/DUO/V/GFI/15 - Double socket, in vertical arrangement, integrated residual current operated circuit breaker (GFCI Class A), Pin connector pattern type AB 15A, connection method: Screw connection, color: gray, nom. voltage: 125 V AC (60 Hz), nominal current: 15 A, DIN rail or direct mounting, standards/specifications: UL 508A, Country marking: USA - 1263628
Condition: New
Usually ships Same Day or Next Day$59.52
Sale Price
$49.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1263628 The electrical component features a double socket in a vertical arrangement with an integrated GFCI Class A circuit breaker. It has a type AB pin connector pattern and is rated for 15A of current. The connection method uses screw connections, while the component itself operates at 125V AC (60Hz) and has a DIN rail or direct mounting option. It meets UL 508A standards and is marked as compliant with USA regulations.
Specifications
Manufacturer
Phoenix Contact
Component
Accessories
Sub Component
Double Socket
Features
Comprehensive product range for worldwide use
Space-saving due to the modular design and versions with double slot
Flexible installation with DIN rail, mounting frame, and direct mounting
Robust and temperature-resistant due to versions with IP65 degree of protection
Integrated touch protection
Downloads
001061773_04_DoC_EU.pdf001452741_00_ULCompCAUS_E255026.pdf001524486_00_CSACertCA_13631.pdfchina rohs declaration-spreadsheet.pdfchina rohs declaration-spreadsheet.stpChina RoHS Declaration_1263628_02_en.pdfChina RoHS Declaration_1263628_02_zh.pdfcoc document.pdfeu declaration of conformity.pdfPhoenix Data Sheet.pdfproduct drawing.dxfsimplified 3d model of the item.stpSpecification Sheet.pdf
Code: 738518
Phoenix Contact 1263628 Double socket EO-AB/UT/LED/DUO/V/GFI/15
$59.52
Sale Price
$49.60
