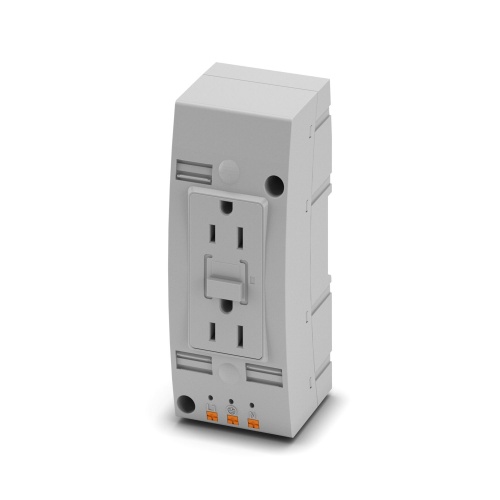

Phoenix Contact 1263626 Double socket EO-AB/PT/LED/DUO/V/GFI/15
Normally In Stock
Code: 738514
Phoenix Contact EO-AB/PT/LED/DUO/V/GFI/15 - Double socket, in vertical arrangement, integrated residual current operated circuit breaker (GFCI Class A), Pin connector pattern type AB 15A, connection method: Push-in spring connection, color: gray, nom. voltage: 125 V AC (60 Hz), nominal current: 15 A, DIN rail or direct mounting, standards/specifications: UL 508A, Country marking: USA - 1263626
Condition: New
Usually ships Same Day or Next Day$59.52
Sale Price
$49.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1263626 The product features a double socket in a vertical arrangement with an integrated residual current operated circuit breaker that meets GFCI Class A standards. The pin connector pattern is type AB and has a rating of 15A, using a push-in spring connection and a gray color. It operates within a nominal voltage of 125V AC at 60Hz, has a nominal current capacity of 15A, and can be mounted on either a DIN rail or directly. It complies with UL 508A standards and is marked for use in the USA.
Specifications
Manufacturer
Phoenix Contact
Component
Accessories
Sub Component
Double Socket
Features
Comprehensive product range for worldwide use
Space-saving due to the modular design and versions with double slot
Flexible installation with DIN rail, mounting frame, and direct mounting
Robust and temperature-resistant due to versions with IP65 degree of protection
Integrated touch protection
Downloads
001061773_04_DoC_EU.pdf001452764_00_ULCompCAUS_E255026.pdf001524485_00_CSACertCA_13631.pdfchina rohs declaration-spreadsheet.pdfchina rohs declaration-spreadsheet.stpChina RoHS Declaration_1263626_02_en.pdfChina RoHS Declaration_1263626_02_zh.pdfcoc document.pdfeu declaration of conformity.pdfPhoenix Data Sheet.pdfproduct drawing.dxfproduct drawing.pdfsimplified 3d model of the item.stpSpecification Sheet.pdf
