Code: 736082

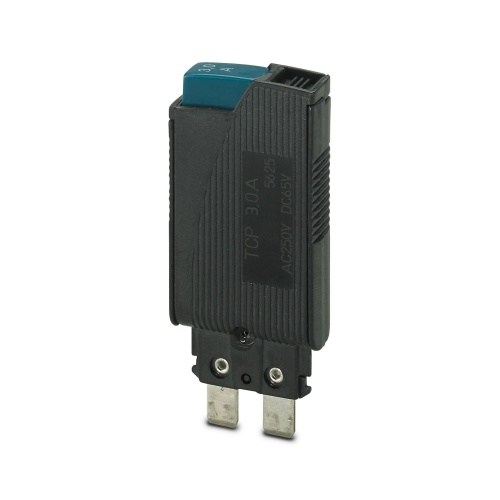

Phoenix Contact 0712233 Thermal device circuit breaker TCP 3A
Normally In Stock
TCP 3A Phoenix 0712233 Thermal device circuit breakers 3 Amp on base element Protective Devices
Condition: New
Usually ships Same Day or Next Day$20.39
Sale Price
$16.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

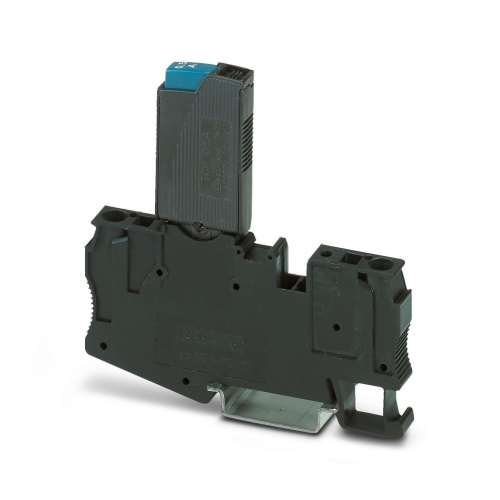

Phoenix Contact 0712233 A one-channel thermal device circuit breaker is designed to safeguard loads that operate at either 250V AC or 72V DC when subjected to an overload condition, providing protection against such events. This device can be installed on fuse terminal blocks and interfaces for flat plug-in fuses of type C, as specified in the ISO 8820-3 standard. The nominal current setting for this circuit breaker is fixed at 3A.
Specifications
Breaker Amperage Rating
3 Amp
Breaker Number of Poles
Single Pole
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Fast, replacement part-free recommissioning after an event with the reconnection options
Easy to retrofit in existing systems with vehicle flat-type fuses with identical pin connector pattern
System disconnection for maintenance actions via the integrated device switch
Downloads
000292280_02_ULCompUS_FILEE140459.pdf000292281_02_ULCompCA_FILEE140459.pdf001253369_01_CCCCN_2025010307749780.pdf001492652_01_UAERoHS_23-10-88896.pdf083130646_04_DoC_EU.pdf097107247_02_DoC_UK.pdfcoc document.pdfdocumentation of the ecological footprint.pdfdocumentation of the ecological footprint.stpeu declaration of conformity.pdfPhoenix 0712233 CAD data International.dxfPhoenix 0712233 CAD data International.pdfPhoenix 0712233 CAD data International.stpPhoenix 0712233 CAD Drawing.zipPhoenix 0712233 Data Sheet English-2.pdfPhoenix 0712233 Data Sheet English.pdfPhoenix 0712233 Flyer English.pdfPhoenix 0712233 Manufacturers declaration International.pdfPhoenix 0712233 Spec Sheet.pdfPhoenix 0712233 Tender Text English.zipPhoenix 0712233 User Manual.pdfPhoenix 0712233 Various English.pdfproduct drawing.dxfproduct drawing.pdfsimplified 3d model of the item.pdfsimplified 3d model of the item.stpuk declaration of conformity.pdf
