Phoenix Contact 3036505 Fuse modular terminal block ST 4-FSI/C-LED 24
Normally In Stock
Code: 828
ST 4-FSI/C-LED 24 Phoenix 3036505 Fuse terminal block Spring-cage connection 24 V 30 Amps black Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$20.27
Sale Price
$16.89
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3036505 A terminal block is combined with an LED to create a unit that can be mounted on the NS 35 standard, ideal for use in applications involving miniature circuit breakers, featuring a terminal width of 8.2mm and a black finish.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Fused
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Component Color
Black
Terminal Block Amperage
30 Amp
Terminal Block Fuse Type
C
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Fuse Terminal Block
Sub Component
Fuse Modular Terminal Block
Features

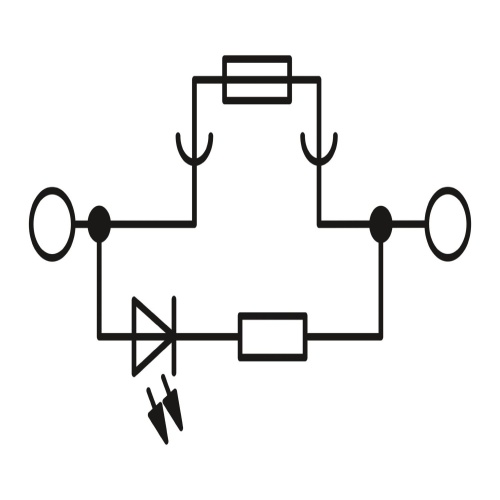

Versions with LED for indicating that a fuse has blown
The ST 4-FSI/C fuse terminal block accommodates flat-type fuses in accordance with ISO/DIS 8820/DIN 72581-3 or the TCP .../DC32V thermal miniature circuit breaker as the fuse element
Downloads
Phoenix 3036505 CAD data International.dxfPhoenix 3036505 CAD data International.pdfPhoenix 3036505 CAD data International.stpPhoenix 3036505 CAD Drawing.zipPhoenix 3036505 Data Sheet English-2.pdfPhoenix 3036505 Data Sheet English-3.pdfPhoenix 3036505 Data Sheet English-4.pdfPhoenix 3036505 Data Sheet English.pdfPhoenix 3036505 Safety note English.pdfPhoenix 3036505 Spec Sheet.pdfPhoenix 3036505 Tender Text English.zipPhoenix 3036505 User Manual.pdf
