Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

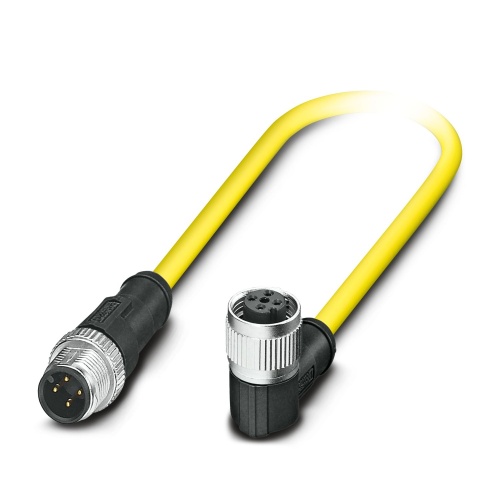

Phoenix Contact 1406222 Sensor/actuator cable SAC-4P-M12MS/ 1,5-542/M12FR BK
Normally In Stock
Code: 73223
Phoenix 1406222 PVC,Yellow 1.5 m Plug Straight M12 Socket Angled M12 4-position A - standard Zinc die-cast, nickel-plated Sensor/actuator cable
Condition: New
Usually ships Same Day or Next Day$20.65
Sale Price
$17.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1406222 A sensor/actuator cable with a yellow PVC material and plug configuration is required, featuring a straight M12 socket with two coded positions for a specific device, attached to a 4-position socket with an angled M12 configuration, and has a total length of 1.5 meters.
Specifications
Cable Number of Positions
4-Position
Cable Coding
A - Standard
Cable Head 1 Design
Plug Straight M12
Cable Head 2 Design
Socket Angled M12
Cable Knurl Material
Zinc Die-Cast
Cable Knurl Material
Nickel-Plated
Manufacturer
Phoenix Contact
Component
Sensor-Actuator Cable
Cable Length
1.5 M
Cable Material
PVC
Features
Numerous sizes and high numbers of positions – from M8 to M40 as well as 1/2″ and 7/8″ and up to 17 positions in one connector
Quick and reliable connection, even in confined spaces, with M12 push-pull connectors
Advanced Shielding Technology provides a totally protected and reliable shield connection under extreme environmental conditions
Safe, efficient control of electromagnetic hydraulic and pneumatic valves with preassembled valve connectors
Perfectly fitting cabling with customer-specific versions starting from a batch size of 1
Code: 73223
Phoenix Contact 1406222 Sensor/actuator cable SAC-4P-M12MS/ 1,5-542/M12FR BK
$20.65
Sale Price
$17.21
