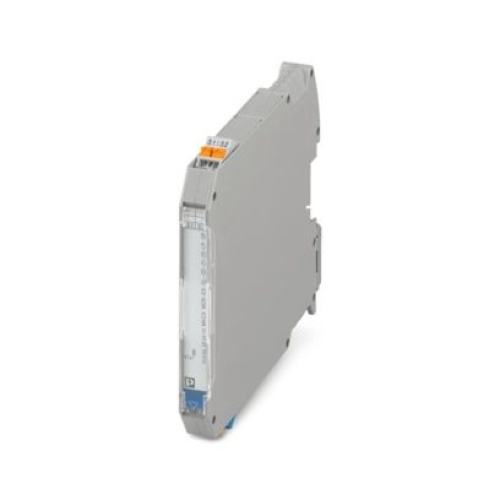

MACX MCR-EX-SL-SD-21-25-LP-SP Phoenix Contact 2924113 Solenoid driver
MACX MCR-EX-SL-SD-21-25-LP-SP Phoenix 2924113 Solenoid driver
Normally In Stock! Order now!
Condition: New
Usually ships within 7-14 days. Call for ship time.
Price: $295.69
Sale Price:
$242.93
Ex i solenoid driver. For the intrinsically safe control of Ex i solenoid valves, alarm modules or LEDs installed in the Ex area. Current limitation at 25 mA. For gases up to Group IIC, loop-powered, electrical isolation, SIL 3. Push-in connection.
| Specifications | |
| Safety Connection Method | Push-in connection |
| Safety Degree of Protection | IP20 (not assessed by UL) |
| Safety Current Limitation | 25 ma. for gases up to group iic |
| Manufacturer | Phoenix Contact |
| Component | Solenoid driver |
- Installation in zone 2, protection type "n" (EN 60079-15) permitted
- Various output characteristic curves compatible with standard solenoid valves
- Loop-powered: the required power is supplied via the control signal on the input side.
- Mechanically compatible with the DIN rail connector
- Up to SIL 3 in accordance with IEC 61508
- 2-way electrical isolation
- Output: [Ex ia] IIC/[Ex ia] IIB
- Input: 19.2 V DC … 30 V DC
