Phoenix Contact 2902932 Module carrier TC-D37SUB-AIO16-EX-PS-UNI
Normally In Stock
Code: 675168
Phoenix Contact TC-D37SUB-AIO16-EX-PS-UNI - Module carrier - 2902932
Condition: New
Usually ships Same Day or Next Day $1092.11
Sale Price
$910.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2902932 A universal termination carrier is a device that enables the connection of up to 16 MACX Analog Ex i signal conditioners to either digital or analog input/output cards using a 37-position D-sub connector, offering a 1:1 connection ratio while also supporting HART multiplexer connections.
Specifications
Manufacturer
Phoenix Contact
PLC & IO Connection Method
Pin Strip
Component
Module Carrier
Features
Mechanically decoupled, passive PCB
Robust aluminum profile with integrated DIN rail
Side parts with integrated end clamps
D-SUB pin strip system connection, 37-pos. (1:1 connection)
Simple or redundant supply (decoupled from diode, protected against polarity reversal) and monitoring function implemented via separate DIN rail module
Interface for connection to HART multiplexer

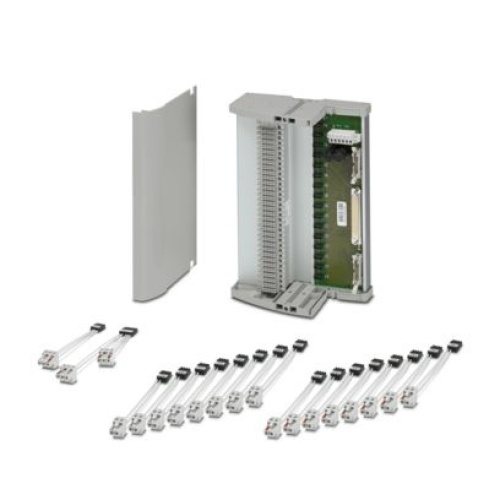

Cable sets for signal connection are supplied as standard and do not have to be ordered separately
