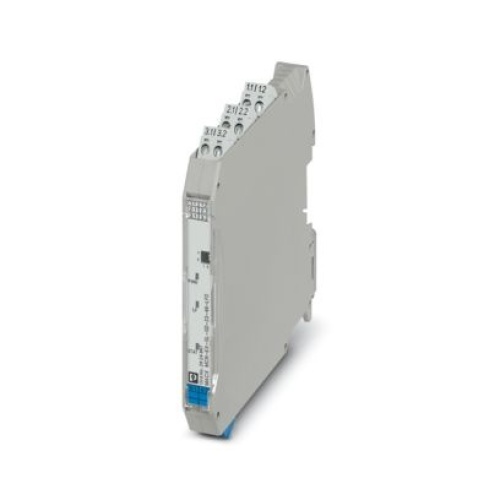

MACX MCR-EX-SL-SD-23-48-LFD Phoenix Contact 2924867 Solenoid driver
MACX MCR-EX-SL-SD-23-48-LFD Phoenix 2924867 Solenoid driver
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $417.33
Sale Price:
$342.88
Ex i solenoid driver for controlling Ex i solenoid valves in hazardous areas, logic input, off-load voltage 22.6 V, current limitation at 48 mA, , line fault transparency, error message output, up to SIL 3 according to IEC 61508, screw connection
| Specifications | |
| Safety Connection Method | Screw connection |
| Safety Degree of Protection | IP20 (not assessed by UL) |
| Safety Current Limitation | 48 ma |
| Manufacturer | Phoenix Contact |
| Component | Solenoid driver |
- Transparent for test pulses
- Output: intrinsically safe [Ex ia]
- off-load voltage > 22.6 V DC
- current limitation > 48 mA
- Line fault detection (can be enabled/disabled), via the signal circuit or via a separate error message output
- Input: logic
- Up to SIL 3 according to IEC/EN 61508
- Safe electrical isolation between output, input, supply, and error message output
- Power supply and error indication possible via DIN rail connector
- Plug-in connection terminals, screw connection technology
- Installation in zone 2 permitted
- Housing width: 12.5 mm
