Phoenix Contact 2906156 Solenoid driver MACX MCR-EX-SL-SD-24-48-LFD-SP
Normally In Stock
Code: 73132
Phoenix 2906156 Solenoid driver
Condition: New
Usually ships Same Day or Next Day$388.61
Sale Price
$323.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

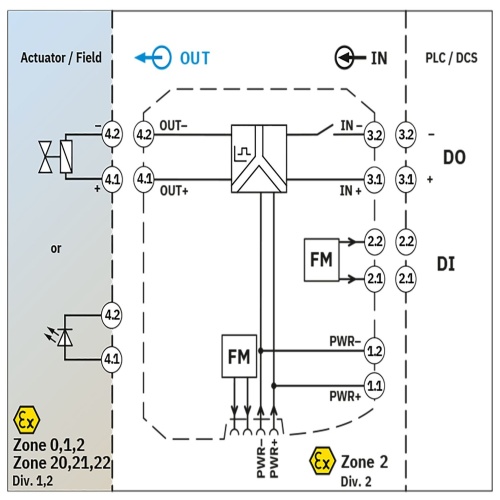

Phoenix Contact 2906156 A standalone solenoid driver is designed for controlling Ex i rated solenoid valves in hazardous areas, featuring a logic input and supporting an off-load voltage of 24.3V with current limitation at 48mA, along with line fault transparency and error message output capabilities, and meets SIL 3 compliance according to IEC 61508 standards, utilizing a push-in connection.
Specifications
Manufacturer
Phoenix Contact
Component
Solenoid Driver
Conditioner Connection Type
Push-In Connection
Features
Transparent for test pulses
Output: intrinsically safe [Ex ia]

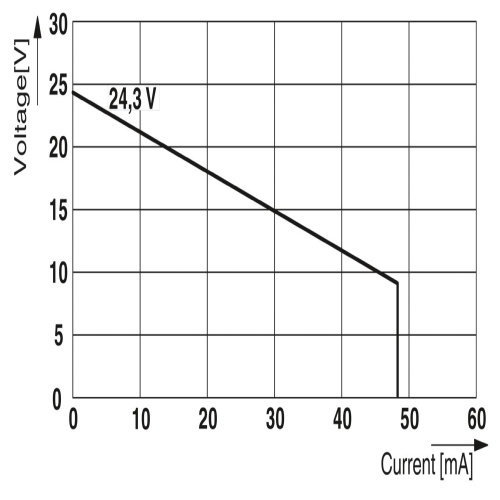

off-load voltage > 24.3 V DC
current limitation > 48 mA
Line fault detection (can be enabled/disabled), via the signal circuit or via a separate error message output
Input: logic
Up to SIL 3 according to IEC/EN 61508
Safe electrical isolation between output, input, supply, and error message output
Power supply and error indication possible via DIN rail connector
Plug-in connection terminals, push-in connection technology
Installation in zone 2 permitted
Housing width: 12.5 mm
