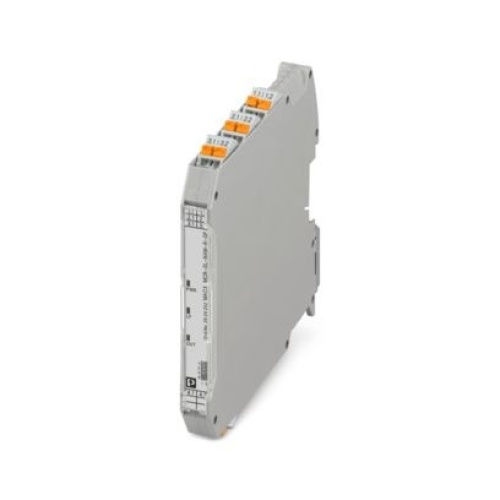

MACX MCR-SL-NAM-R-SP Phoenix Contact 2924252 Isolation amplifier
MACX MCR-SL-NAM-R-SP Phoenix 2924252 Isolation amplifier
Normally In Stock! Order now!
Condition: New
Usually ships within 7-14 days. Call for ship time.
Price: $229.86
Sale Price:
$188.85
NAMUR isolation amplifier for operating proximity sensors and switches. The signals are transferred to the control level using relay output (PDT). Line fault detection (LFD), galvanic 3-way isolation, SIL 2, with push-in connection.
| Specifications | |
| Safety Connection Method | Push-in connection |
| Safety Contact Type | 1 PDT |
| Safety Interfaces | Proximity Switches |
| Safety Degree of Protection | IP20 (not assessed by UL) |
| Sub Component | Isolating switch transf. |
| Manufacturer | Phoenix Contact |
| Component | Isolation amplifier |
- Line fault detection (LFD), can be activated/deactivated, error indicated by flashing red LED with de-excitation of output relay
- Installation in zone 2, protection type "n" (EN 60079-15) permitted
- Up to SIL 2 in accordance with EN 61508
- Power supply and error indication possible via DIN rail connector
- Direction of operation can be selected (operating or closed circuit current behavior)
- 3-way electrical isolation
- LED indicators for supply voltage, switching state, and malfunction in accordance with NAMUR NE 44
- Signal output relay (changeover contact)
- Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit
