Phoenix Contact 2865036 Isolation switch amplifier MACX MCR-SL-2NAM-T
Normally In Stock
Code: 73103
MACX MCR-SL-2NAM-T Phoenix 2865036 Isolation amplifier
Condition: New
Usually ships Same Day or Next Day$303.59
Sale Price
$252.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

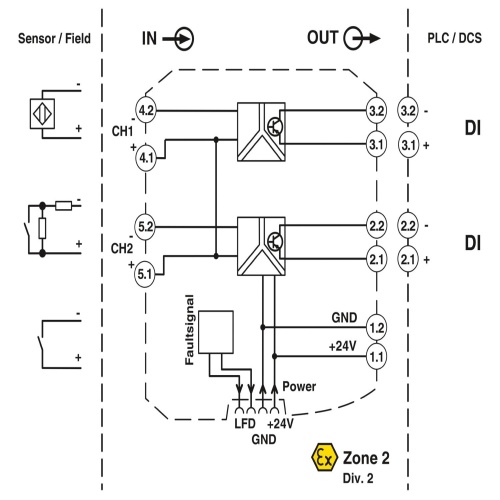

Phoenix Contact 2865036 The NAMUR 2-channel signal conditioner is designed to process signals from proximity sensors and switches before transmitting them to a higher control level via passive transistor outputs. It features line fault detection, three-way electrical isolation, and meets the SIL 2 standard for reliability, with connections made through screws.
Specifications
Safety Connection Method
Screw Connection
Safety Interfaces
Proximity Switches
Safety Degree of Protection
IP20 (Not Assessed By UL)
Sub Component
Isolating Switch Transf.
Manufacturer
Phoenix Contact
Component
Isolation Amplifier
Features
Line fault detection (LFD), can be activated/deactivated, error indicated by flashing red LED with disabling of transistor output
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Up to SIL 2 in accordance with EN 61508
Power supply and error indication possible via DIN rail connector
2-channel
3-way electrical isolation
Direction of operation can be selected (operating or closed circuit current behavior)
Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit
LED indicators for supply voltage, switching state, and malfunction in accordance with NAMUR NE 44
Transistor signal output (passive)
up to 5 kHz
