Phoenix Contact 2924207 Power/input signal conditioner MACX MCR-SL-RPSSI-I-SP
Normally In Stock
Code: 72399
MACX MCR-SL-RPSSI-I-SP MACX MCR-SL-RPSSI-I-SP Phoenix Contact 2924207 Repeater power supply operation Power/input isolating amplifier
Condition: New
Usually ships Same Day or Next Day$445.22
Sale Price
$371.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

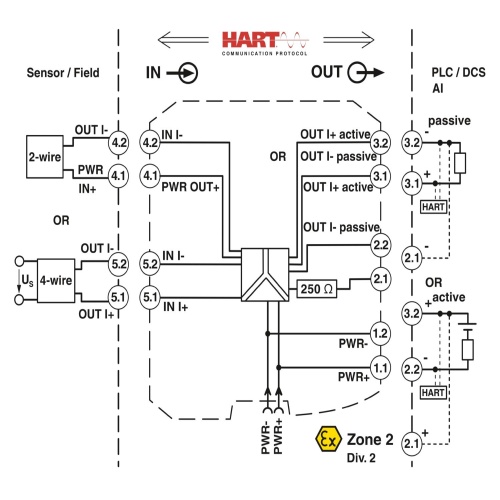

Phoenix Contact 2924207 A repeater power supply and input signal conditioner designed for use with HART interfaces can transmit both supplied and active current signals within the 0-4...20 mA range to a load, whether it's an active or passive device. This equipment is equipped with three-way electrical isolation and meets the SIL 2 standard as per IEC 61508.
Specifications
Manufacturer
Phoenix Contact
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
0 mA - 20 mA
Conditioner Output Signal Range
4 mA - 20 mA
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Conditioner Connection Type
Push-in connection
Component
Repeater
Features
Input: 0/4 mA ... 20 mA (powered or not powered)
Up to SIL 2 in accordance with EN 61508
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Power supply possible via DIN rail connector
Output: 0/4 mA ... 20 mA (active or passive)
Terminal point with 250 Ω resistor to increase HART impedance for low-resistance systems
3-way electrical isolation
Plug-in screw or spring-cage connection technology (Push-in technology), with integrated sockets for HART communicators

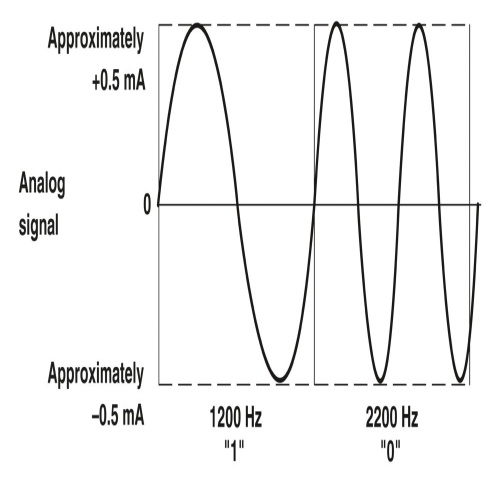

Bidirectional transmission of digital HART communication signals
Downloads
Phoenix 2924207 Application Note English.pdfPhoenix 2924207 CAD data International.dxfPhoenix 2924207 CAD data International.pdfPhoenix 2924207 CAD data International.stpPhoenix 2924207 Certification International.pdfPhoenix 2924207 Data Sheet English.pdfPhoenix 2924207 Manual English.pdfPhoenix 2924207 Manufacturers declaration English.pdfPhoenix 2924207 Manufacturers declaration International.pdfPhoenix 2924207 Manufacturers declaration International-2.pdfPhoenix 2924207 Manufacturers declaration International-3.pdfPhoenix 2924207 Package Slip International.pdfPhoenix 2924207 Tender Text English.zip
