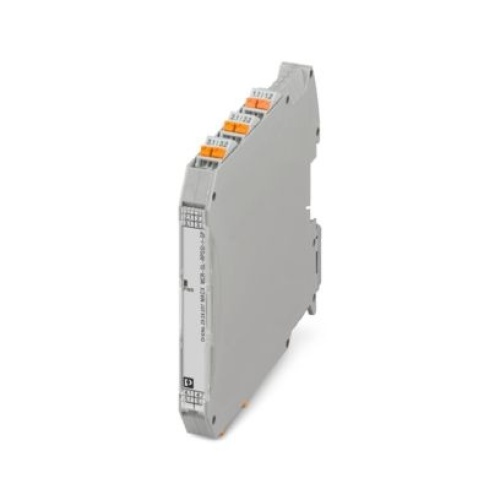

MACX MCR-SL-RPSSI-I-SP Phoenix Contact 2924207 Repeater power supply operation Power/input isolating amplifier
MACX MCR-SL-RPSSI-I-SP MACX MCR-SL-RPSSI-I-SP Phoenix Contact 2924207 Repeater power supply operation Power/input isolating amplifier
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $451.59
Sale Price:
$371.02
Repeater power supply and input isolating amplifier, HART. Transfers supplied or active 0/4 - 20 mA signals to a load (active or passive). 3-way electrical isolation, SIL 2 according to IEC 61508.
| Specifications | |
| Output Signal Type | Current |
| Input Signal Type | Current |
| Input Signal | 0 mA - 20 mA |
| Input Signal | 4 mA - 20 mA |
| Output Signal | 0 mA - 20 mA |
| Output Signal | 4 mA - 20 mA |
| Number of Channels | 1 |
| Interfaces | Repeater power supply operation |
| Manufacturer | Phoenix Contact |
| Ambient Temperature | -20 °C - 60 °C (Any mounting position) |
| Connection Method | Push-in connection |
| Supply Voltage | 24 VDC |
| Component | Power Monitors |
| Component | Transducers & Repeaters |
- Input: 0/4 mA ... 20 mA (powered or not powered)
- Up to SIL 2 in accordance with EN 61508
- Installation in zone 2, protection type "n" (EN 60079-15) permitted
- Power supply possible via DIN rail connector
- Output: 0/4 mA ... 20 mA (active or passive)
- Terminal point with 250 Ω resistor to increase HART impedance for low-resistance systems
- 3-way electrical isolation
- Plug-in screw or spring-cage connection technology (Push-in technology), with integrated sockets for HART communicators
- Bidirectional transmission of digital HART communication signals
