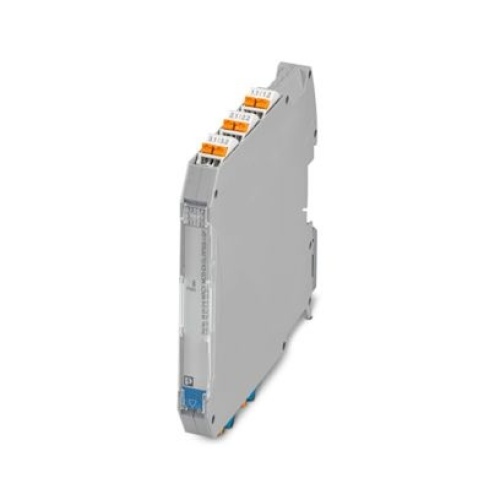

MACX MCR-EX-SL-RPSSI-I-SP Phoenix Contact 2924016 Repeater power supply operation Power/input isolating amplifier
MACX MCR-EX-SL-RPSSI-I-SP MACX MCR-EX-SL-RPSSI-I-SP Phoenix Contact 2924016 Repeater power supply operation Power/input isolating amplifier
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $472.54
Sale Price:
$388.23
Ex i repeater power supply and input signal conditioner, HART. Transmits supplied or active 0/4 - 20 mA signals from the hazardous area to a load (active or passive) in the safe area. 3-way electrical isolation; SIL 2 according to IEC 61508, with push-in connection
| Specifications | |
| Output Signal Type | Current |
| Input Signal Type | Current |
| Input Signal | 0 mA - 20 mA |
| Input Signal | 4 mA - 20 mA |
| Output Signal | 0 mA - 20 mA |
| Output Signal | 4 mA - 20 mA |
| Number of Channels | 1 |
| Interfaces | Repeater power supply operation |
| Manufacturer | Phoenix Contact |
| Ambient Temperature | -20 °C - 60 °C (Any mounting position) |
| Connection Method | Push-in connection |
| Supply Voltage | 24 VDC |
| Component | Power Monitors |
| Component | Transducers & Repeaters |
- Bidirectional HART signal transmission
- Measuring transducer supply voltage > 16 V
- 0/4 mA ... 20 mA output, active up to 1000 Ω load or passive
- 0/4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered and not powered
- Error indication according to NAMUR NE 43
- SIL 2 according to IEC/EN 61508
- Installation in Ex zone 2 permitted
- 3-way electrical isolation
- Power supply possible via DIN rail connector
- Plug-in connection terminals, push-in connection technology

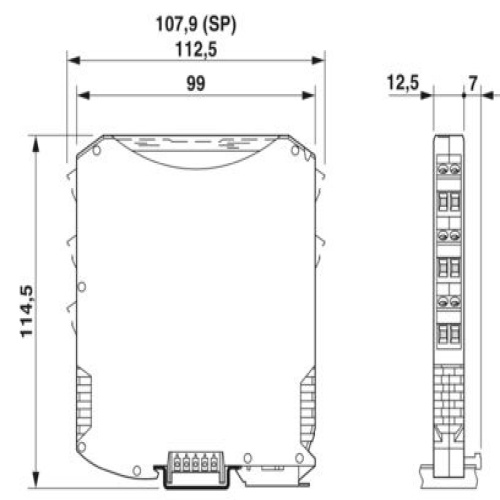

- Housing width: 12.5 mm
- Minimal power dissipation
- High transmission accuracy
