Phoenix Contact 2865955 Power/input signal conditioner MACX MCR-SL-RPSSI-I
Normally In Stock
Code: 72397
MACX MCR-SL-RPSSI-I MACX MCR-SL-RPSSI-I Phoenix Contact 2865955 Repeater power supply operation Power/input isolating amplifier
Condition: New
Usually ships within 7-14 days. Call for ship time.$445.22
Sale Price
$371.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2865955 A repeater power supply and input signal conditioner that is compatible with HART technology transmits 0/4…20 mA signals to a load whether active or passive, while also providing 3-way electrical isolation that meets the SIL 2 standard as outlined in IEC 61508.
Specifications
Conditioner Connection Type
Screw Connection
Manufacturer
Phoenix Contact
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
0 mA - 20 mA
Conditioner Output Signal Range
4 mA - 20 mA
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Component
Repeater
Features
3-way electrical isolation
Up to SIL 2 in accordance with EN 61508
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Power supply possible via DIN rail connector
Terminal point with 250 Ω resistor to increase HART impedance for low-resistance systems
Plug-in screw or spring-cage connection technology (Push-in technology), with integrated sockets for HART communicators

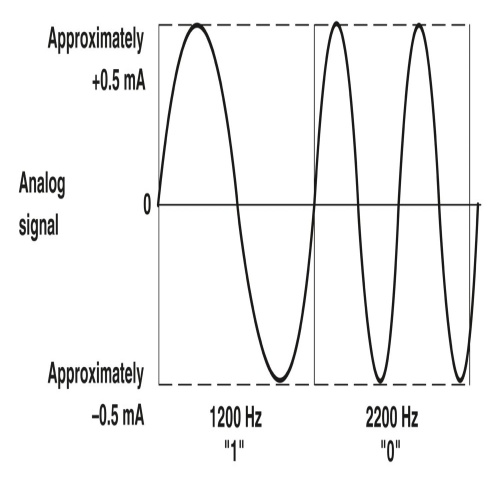

Bidirectional transmission of digital HART communication signals
Output: 0/4 mA ... 20 mA (active or passive)
Input: 0/4 mA ... 20 mA (powered or not powered)
Downloads
Phoenix 2865955 Application Note English.pdfPhoenix 2865955 CAD data International.dxfPhoenix 2865955 CAD data International.pdfPhoenix 2865955 CAD data International.stpPhoenix 2865955 Certification International.pdfPhoenix 2865955 Data Sheet English.pdfPhoenix 2865955 Manual English.pdfPhoenix 2865955 Manufacturers declaration English.pdfPhoenix 2865955 Manufacturers declaration International.pdfPhoenix 2865955 Manufacturers declaration International-2.pdfPhoenix 2865955 Manufacturers declaration International-3.pdfPhoenix 2865955 Package Slip International.pdfPhoenix 2865955 Tender Text English.zip
