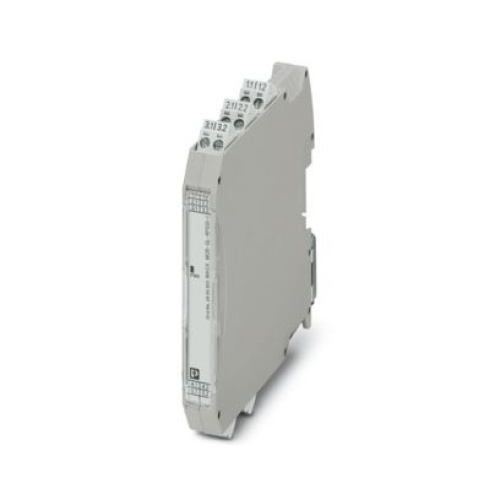

MACX MCR-SL-RPSSI-I Phoenix Contact 2865955 Repeater power supply operation Power/input isolating amplifier
MACX MCR-SL-RPSSI-I MACX MCR-SL-RPSSI-I Phoenix Contact 2865955 Repeater power supply operation Power/input isolating amplifier
Normally In Stock! Order now!
Condition: New
Usually ships within 7-14 days. Call for ship time.
Price: $451.59
Sale Price:
$371.02
Repeater power supply and input isolating amplifier, HART. Transfers supplied or active 0/4 - 20 mA signals to a load (active or passive). 3-way electrical isolation, SIL 2 according to IEC 61508.
| Specifications | |
| Output Signal Type | Current |
| Input Signal Type | Current |
| Input Signal | 0 mA - 20 mA |
| Input Signal | 4 mA - 20 mA |
| Output Signal | 0 mA - 20 mA |
| Output Signal | 4 mA - 20 mA |
| Number of Channels | 1 |
| Interfaces | Repeater power supply operation |
| Manufacturer | Phoenix Contact |
| Ambient Temperature | -20 °C - 60 °C (Any mounting position) |
| Supply Voltage | 24 VDC |
| Connection Method | Screw connection |
| Component | Power Monitors |
| Component | Transducers & Repeaters |
- 3-way electrical isolation
- Up to SIL 2 in accordance with EN 61508
- Installation in zone 2, protection type "n" (EN 60079-15) permitted
- Power supply possible via DIN rail connector
- Terminal point with 250 Ω resistor to increase HART impedance for low-resistance systems
- Plug-in screw or spring-cage connection technology (Push-in technology), with integrated sockets for HART communicators
- Bidirectional transmission of digital HART communication signals
- Output: 0/4 mA ... 20 mA (active or passive)
- Input: 0/4 mA ... 20 mA (powered or not powered)
Customer Reviews
0.0
All Reviews
Phoenix 2865955 Application Note English.pdf
Phoenix 2865955 CAD data International.dxf
Phoenix 2865955 CAD data International.pdf
Phoenix 2865955 CAD data International.stp
Phoenix 2865955 Certification International.pdf
Phoenix 2865955 Data Sheet English.pdf
Phoenix 2865955 Manual English.pdf
Phoenix 2865955 Manufacturers declaration English.pdf
Phoenix 2865955 Manufacturers declaration International.pdf
Phoenix 2865955 Manufacturers declaration International-2.pdf
Phoenix 2865955 Manufacturers declaration International-3.pdf
Phoenix 2865955 Package Slip International.pdf
Phoenix 2865955 Tender Text English.zip
