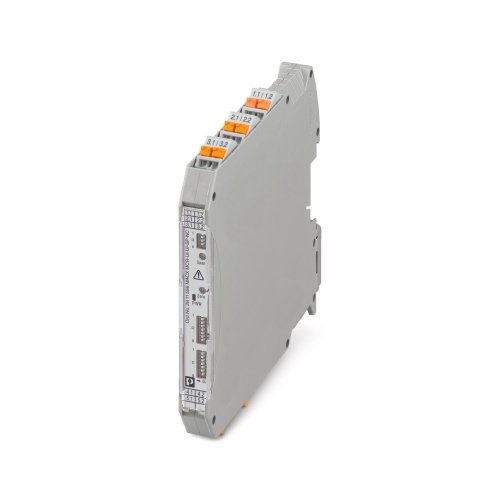

Phoenix Contact 2811556 Signal conditioner MACX MCR-UI-UI-SP-NC
Normally In Stock
Code: 72322
MACX MCR-UI-UI-SP-NC MACX MCR-UI-UI-SP-NC Phoenix Contact 2811556 CE Signal conditioner
Condition: New
Usually ships Same Day or Next Day$646.12
Sale Price
$538.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2811556 A configurable 3-way isolating amplifier features safe electrical isolation and comes in a power bridging configuration at 24V. The unit is equipped with DIP switches on the front, allowing for over 1600 signal conversions to be set to custom configurations.
Specifications
Manufacturer
Phoenix Contact
Component
Signal Conditioner
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Conditioner Connection Type
Push-In Connection
Conditioner Output Signal Range
0 Ma - 5 Ma
Conditioner Output Signal Range
0 Ma - 10 Ma
Conditioner Output Signal Range
1 Ma - 5 Ma
Conditioner Output Signal Range
2 Ma - 10 Ma
Conditioner Output Signal Range
-5 Ma - 5 Ma
Conditioner Output Signal Range
-10 Ma - 10 Ma
Conditioner Output Signal Range
-20 Ma - 20 Ma
Conditioner Output Signal Range
0 Volt - 10 Volt
Conditioner Output Signal Range
-10 Volt - 10 Volt
Conditioner Output Signal Range
0 Volt - 5 Volt
Conditioner Output Signal Range
1 Volt - 5 Volt
Conditioner Output Signal Range
2 Volt - 10 Volt
Conditioner Output Signal Range
-5 Volt - 5 Volt
Conditioner Output Signal Range
0 Volt - 2.5 Volt
Conditioner Output Signal Range
0.5 Volt - 2.5 Volt
Conditioner Output Signal Range
-2.5 Volt - 2.5 Volt
Features
Up to SIL 2 in accordance with EN 61508
Over 1600 signal conversions can be set via DIP switches on the front
Installation in zone 2 permitted
Power supply possible via DIN rail connector
Active or passive output
Status indicator for supply voltage
Plug-in screw or spring-cage connection technology (Push-in technology)
Analog signal conditioner for isolating, filtering, amplifying, and converting standard analog signals
Configurable input and output signals, including bipolar current and voltage signals
3-way electrical isolation
10 kHz limit frequency for time-critical applications
Downloads
Phoenix 2811556 Application Note English.pdfPhoenix 2811556 CAD data International.dxfPhoenix 2811556 CAD data International.pdfPhoenix 2811556 CAD data International.stpPhoenix 2811556 Certification English.pdfPhoenix 2811556 Certification International.pdfPhoenix 2811556 Data Sheet English.pdfPhoenix 2811556 Manual English.pdfPhoenix 2811556 Manufacturers declaration English.pdfPhoenix 2811556 Manufacturers declaration International-2.pdfPhoenix 2811556 Manufacturers declaration International.pdfPhoenix 2811556 Package Slip International.pdfPhoenix 2811556 Software International.xlsPhoenix 2811556 Tender Text English.zip
