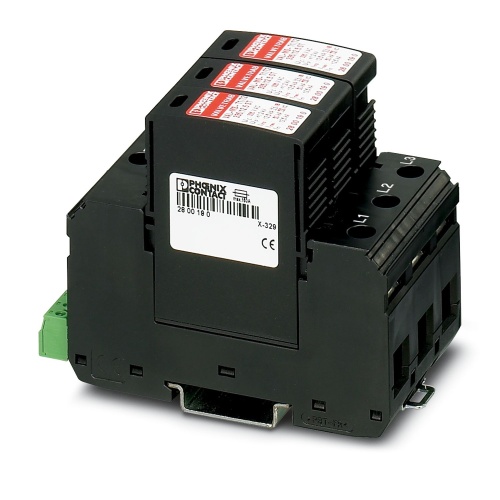

Phoenix Contact 2800188 Lightning/surge arrester type 1/2 VAL-MS-T1/T2 335/12.5/3+0-FM
Normally In Stock
Code: 72137
VAL-MS-T1/T2 335/12.5/3+0-FM Phoenix 2800188 Arrester combination 240/415 VAC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Lightning/surge arrester type 1/2 Surge Protection
Condition: New
Usually ships Same Day or Next Day$701.89
Sale Price
$584.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

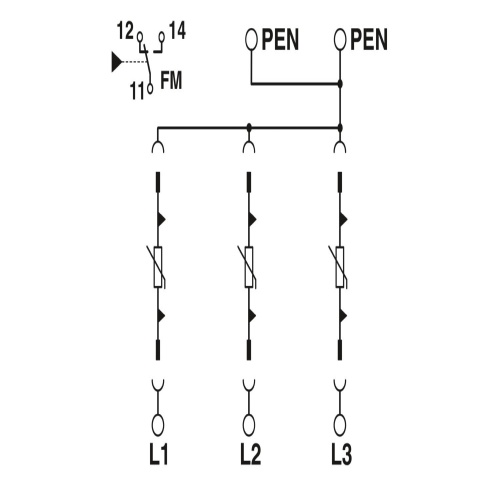

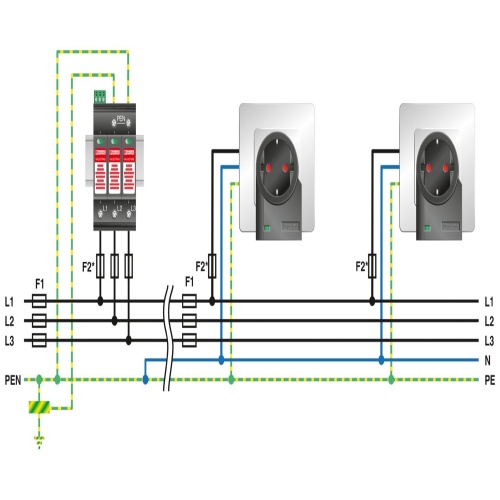

Phoenix Contact 2800188 A universal varistor-based plug-in lightning/surge arrester is designed for use in three-phase power supply networks that utilize a common neutral (N) and earth (PE) conductor configuration, typically represented by a four-conductor system consisting of lines L1, L2, L3, and PE. This type of arrester often features remote indication contacts, allowing users to monitor the device's status and detect potential issues or failures.
Specifications
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Can be used in lightning protection level III and IV due to discharge capacity of 12.5 kA per position
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
Vibration-resistant latching ensures the plug remains firmly in place
Downloads
Phoenix 2800188 CAD data International.dxfPhoenix 2800188 CAD data International.pdfPhoenix 2800188 CAD data International.stpPhoenix 2800188 Flyer English.pdfPhoenix 2800188 Manufacturers declaration English.pdfPhoenix 2800188 Manufacturers declaration International.pdfPhoenix 2800188 Package Slip International.pdfPhoenix 2800188 Software International.zipPhoenix 2800188 Surge Protection English.pdfPhoenix 2800188 Tender Text English.zip
