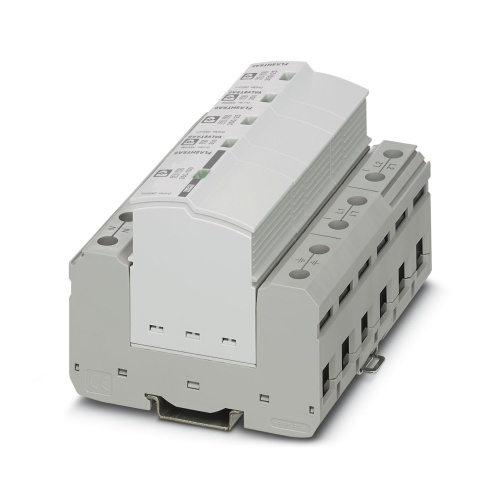

Phoenix Contact 2905468 Type 1+2 special combined lightning current and surge arrester FLT-SEC-T1+T2-2S-350/25-FM
Normally In Stock
Code: 72136
FLT-SEC-T1+T2-2S-350/25-FM Phoenix 2905468 Arrester combination 240/415 VAC Plug-in/screw connection via COMBICON,Screw terminal blocks,Fork-type cable lug Type 1+2 protective device combination Surge Protection
Condition: New
Usually ships Same Day or Next Day$1369.27
Sale Price
$1141.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2905468 For 2-phase power supply networks, a plug-in lightning and surge arrester combination compliant with Type 1+2/Class I+II is required, featuring separate neutrals (N) and earths (PE), specifically identified as L1, L2 for the phase conductors and PE for the neutral conductor.
Specifications
Arrester Class according to IEC
I + II
Arrester Class according to IEC
T1 + T2
Fault Warning
Optical (Type 2 Arrester)
Fault Warning
Remote Indication Contact (Type 2 Arrester)
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Arrester Combination
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Optimum protective effect in the event of high-energy lightning currents, thanks to spark gap technology with low residual voltage characteristic
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Maximum protection against dynamic overvoltages for sensitive devices, thanks to direct coordination with varistor arresters connected in parallel
Downloads
Phoenix 2905468 CAD data International.dxfPhoenix 2905468 CAD data International.pdfPhoenix 2905468 CAD data International.stpPhoenix 2905468 Flyer English-2.pdfPhoenix 2905468 Flyer English.pdfPhoenix 2905468 Manufacturers declaration English.pdfPhoenix 2905468 Manufacturers declaration International.pdfPhoenix 2905468 Package Slip International.pdfPhoenix 2905468 Surge Protection English.pdfPhoenix 2905468 Tender Text English.zip
