Code: 72046

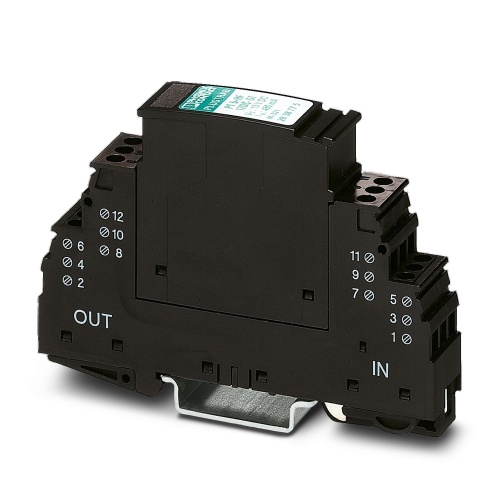

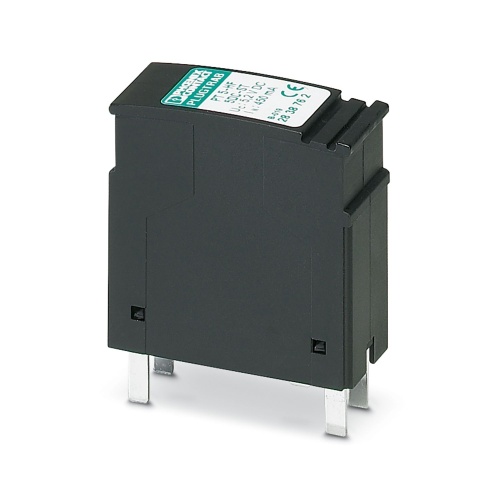

Phoenix Contact 2838762 Surge protection plug PT 5-HF- 5 DC-ST
Normally In Stock
PT 5-HF- 5 DC-ST Phoenix 2838762 Surge protection for information technology 5 VDC Screw connection (in connection with the base element) Surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$359.80
Sale Price
$299.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

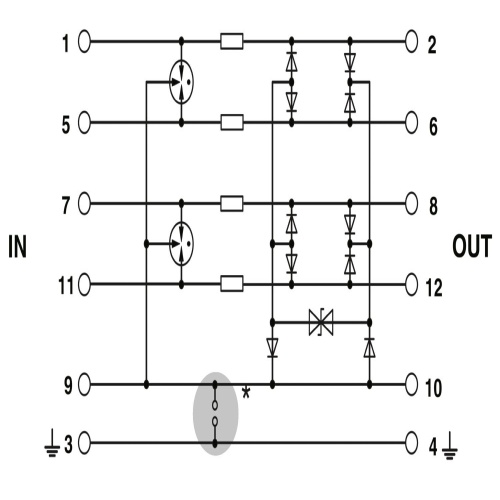

Phoenix Contact 2838762 A protective plug features an HF (High Frequency) protective circuit specifically designed to handle four different signal wires, and is powered by a nominal voltage of 5 volts direct current.
Specifications
Arrester Class according to IEC
C2
Arrester Class according to IEC
D1
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
5 Volt
Maximum Continous Voltage
500 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Nominal Discharge Current
10 Ka
Component
Surge Protection Plug
Features
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Downloads
Phoenix 2838762 CAD data International.dxfPhoenix 2838762 CAD data International.pdfPhoenix 2838762 CAD data International.stpPhoenix 2838762 Certification English.pdfPhoenix 2838762 EPLAN Macro International.z13Phoenix 2838762 EPLAN Macro International.zipPhoenix 2838762 Flyer English.pdfPhoenix 2838762 Manufacturer's declaration English.pdfPhoenix 2838762 Manufacturer's declaration International.pdfPhoenix 2838762 Manufacturers declaration English.pdfPhoenix 2838762 Manufacturers declaration International.pdfPhoenix 2838762 Package Slip International.pdfPhoenix 2838762 Product Information English.pdfPhoenix 2838762 Software International.zipPhoenix 2838762 Surge Protection English.pdfPhoenix 2838762 Tender Text English.zip
