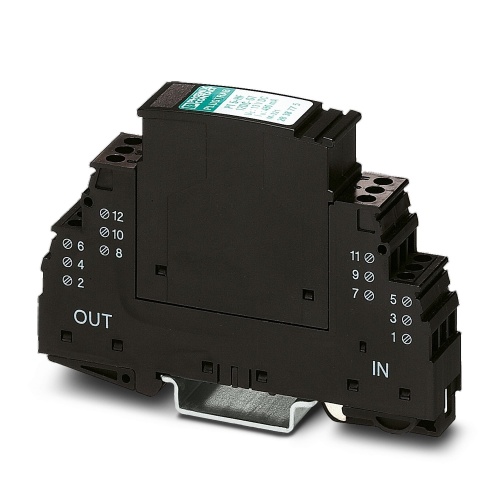

Phoenix Contact 2839208 Surge protection base-element PT 2X2-BE
Normally In Stock
Code: 10490
PT 2X2-BE Phoenix Contact 2839208 Base for Surge Supression Plug-in
Condition: New
Usually ships Same Day or Next Day$143.17
Sale Price
$119.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

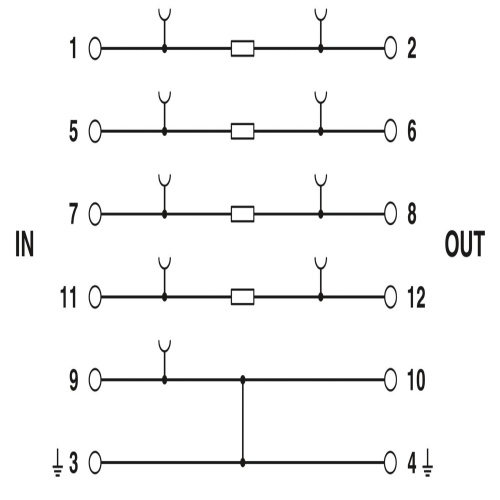

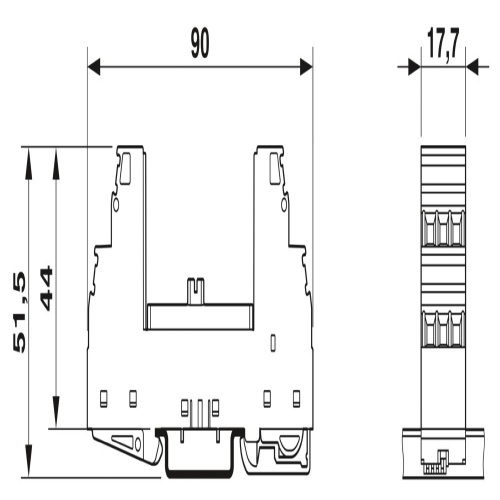

Phoenix Contact 2839208 The base element for a protective plug PT with protective circuit is designed for use in a two-wire floating signal circuit, connecting points 3-4 (GND) to 9-10, suitable for mounting on NS 35/7.5 and NS 35/15 enclosures with a housing width of 17.5 mm.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
580 Volt
Nominal Discharge Current
15 Ka
Component
Surge Protection Plug
Features
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2839208 CAD data International.dxfPhoenix 2839208 CAD data International.pdfPhoenix 2839208 CAD data International.stpPhoenix 2839208 CAD Drawing.dxfPhoenix 2839208 CAD Drawing.zipPhoenix 2839208 Flyer English.pdfPhoenix 2839208 Manufacturers declaration English.pdfPhoenix 2839208 Manufacturers declaration International.pdfPhoenix 2839208 Package Slip International.pdfPhoenix 2839208 Software International.zipPhoenix 2839208 Spec Sheet.pdfPhoenix 2839208 Surge Protection English.pdfPhoenix 2839208 Tender Text English.zipPhoenix 2839208 User Manual.pdf
