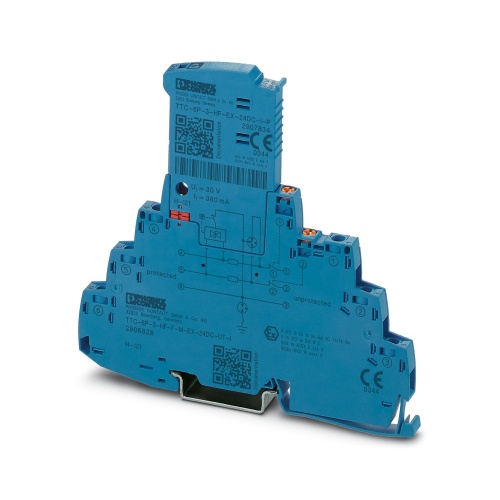

Phoenix Contact 2906828 Surge protection device TTC-6P-3-HF-F-M-EX-24DC-UT-I
Normally In Stock
Code: 72025
TTC-6P-3-HF-F-M-EX-24DC-UT-I Phoenix 2906828 Surge protection for information technology 24 VDC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$237.42
Sale Price
$197.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

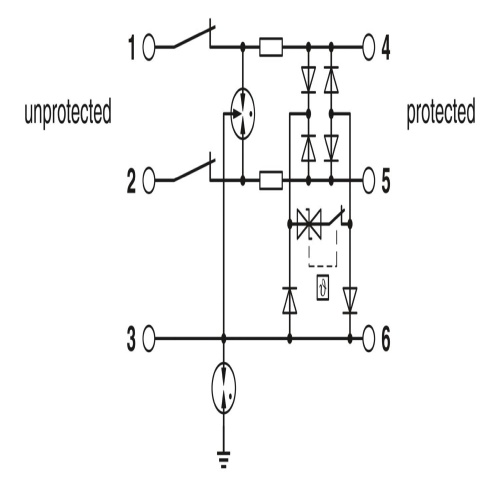

Phoenix Contact 2906828 A 3-wire Ex i signal circuit with common reference potential is protected against surge damage, featuring an integrated status indicator and knife disconnection for safe operation, especially suited for high-frequency (HF) applications where indirect grounding via a gas discharge tube provides additional safety and HART compatibility, suitable also for integration in fieldbus systems like PROFIBUS PA following the FISCO concept, and can be used in safety-related circuits up to SIL 3.
Specifications
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
15 Volt
Component
Surge Protection Device
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2906828 Application Note English.pdfPhoenix 2906828 CAD data International.dxfPhoenix 2906828 CAD data International.pdfPhoenix 2906828 CAD data International.stpPhoenix 2906828 Certification English.pdfPhoenix 2906828 Certification International-2.pdfPhoenix 2906828 Certification International-3.pdfPhoenix 2906828 Certification International-4.pdfPhoenix 2906828 Certification International.pdfPhoenix 2906828 Flyer English-2.pdfPhoenix 2906828 Flyer English.pdfPhoenix 2906828 Manufacturers declaration English.pdfPhoenix 2906828 Manufacturers declaration International.pdfPhoenix 2906828 Package Slip International.pdfPhoenix 2906828 Surge Protection English.pdfPhoenix 2906828 Tender Text English.zip
