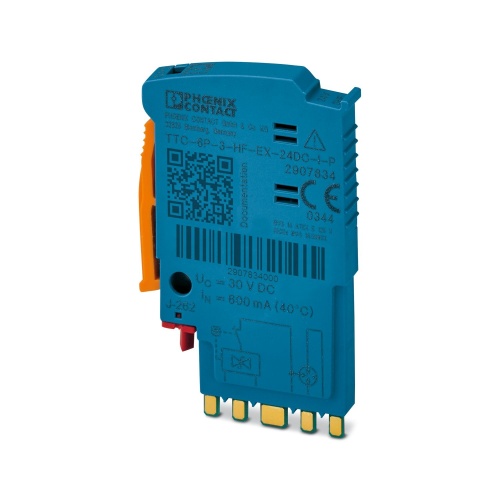

Phoenix Contact 2907834 Surge protection plug TTC-6P-3-HF-EX-24DC-I-P
Normally In Stock
Code: 71978
TTC-6P-3-HF-EX-24DC-I-P Phoenix 2907834 Replacement plug 24 VDC pluggable Surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$199.13
Sale Price
$165.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2907834 A surge protection plug designed for use in three-wire Ex i signal circuits featuring a built-in status indicator, is suitable for high-frequency applications and operates within a nominal DC voltage of 24V.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Max Discharge Capacity
100 A (305 V AC)
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
305 Volt
Nominal Discharge Current
20 Ka
Component
Surge Protection Plug
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2907834 CAD data International.dxfPhoenix 2907834 CAD data International.pdfPhoenix 2907834 CAD data International.stpPhoenix 2907834 Certification International-2.pdfPhoenix 2907834 Certification International-3.pdfPhoenix 2907834 Certification International.pdfPhoenix 2907834 Flyer English-2.pdfPhoenix 2907834 Flyer English.pdfPhoenix 2907834 Manufacturers declaration English.pdfPhoenix 2907834 Manufacturers declaration International.pdfPhoenix 2907834 Package Slip International.pdfPhoenix 2907834 Surge Protection English.pdfPhoenix 2907834 Tender Text English.zip
