Phoenix Contact 2910331 Type 1 surge protection plug VAL-US-277/80-P
Normally In Stock
Code: 71968
VAL-US-277/80-P Phoenix 2910331 Replacement plug 240/415 VAC VALVETRAB plug-in system Type 1 surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$167.62
Sale Price
$139.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

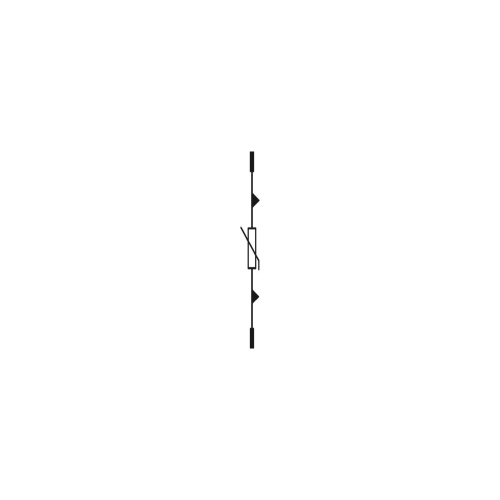

Phoenix Contact 2910331 A UL Recognized Type 1 Surge Protection Device (SPD) and IEC Type 2 surge protection plug that incorporates a varistor and thermal disconnect can be used in conjunction with VAL-US base elements, providing both mechanical and visual alerts in the event of a fault.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
I - II
Arrester Class according to IEC
T1 - T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
264 Volt
Nominal Discharge Current
12.5 Ka
Surge Protector Line Voltage
240-415 Volt
Component
Surge Protection Plug
Features
Thermal disconnect device for each individual plug
Optical, mechanical status indication for the individual arresters
Pluggable
Mechanical coding of all slots
Secure hold of plugs in the event of high lightning current loads and strong vibrations thanks to new latching
Downloads
Phoenix 2910331 CAD data International.dxfPhoenix 2910331 CAD data International.pdfPhoenix 2910331 CAD data International.stpPhoenix 2910331 Flyer English.pdfPhoenix 2910331 Manufacturers declaration International.pdfPhoenix 2910331 Package Slip International.pdfPhoenix 2910331 Software International.zipPhoenix 2910331 Surge Protection English.pdfPhoenix 2910331 Tender Text English.zip
