Code: 71841

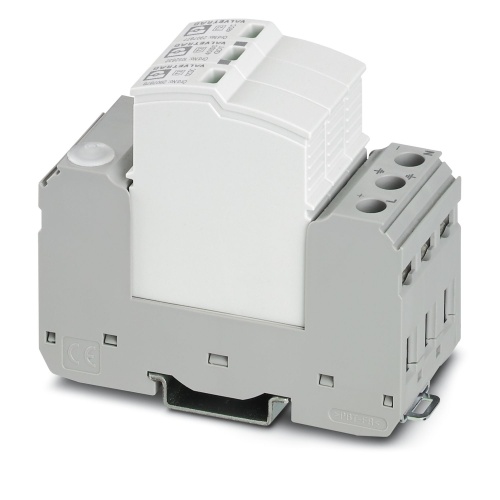

Phoenix Contact 1033788 Type 2 surge arrester VAL-SEC-T2-2+F-120DC-FM
Normally In Stock
VAL-SEC-T2-2+F-120DC-FM Phoenix 1033788 Surge arrester 100 VDC - 120 VDC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Type 2 surge arrester Surge Protection *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$421.98
Sale Price
$351.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1033788 A surge protective device that is leak-proof for use in isolated and grounded DC voltage systems with a linear operating characteristic up to 120VDC, suitable for DIN rail mounting, features a base element with remote indication contact and three interchangeable pluggable temperature-monitored protective elements, providing status messages on each plug.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
275 Volt
Nominal Discharge Current
20 Ka
Surge Protector Line Voltage
100 Volt - 120 Volt
Component
Surge Arrester
Features
More space in the control cabinet due to the narrow overall width of just 12 mm per position
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Free of leakage current so there is no influence on insulation monitoring
Downloads
Phoenix 1033788 CAD data International.dxfPhoenix 1033788 CAD data International.pdfPhoenix 1033788 CAD data International.stpPhoenix 1033788 Flyer English-2.pdfPhoenix 1033788 Flyer English.pdfPhoenix 1033788 Manufacturers declaration English.pdfPhoenix 1033788 Manufacturers declaration International.pdfPhoenix 1033788 Package Slip International.pdfPhoenix 1033788 Surge Protection English.pdfPhoenix 1033788 Tender Text English.zip
