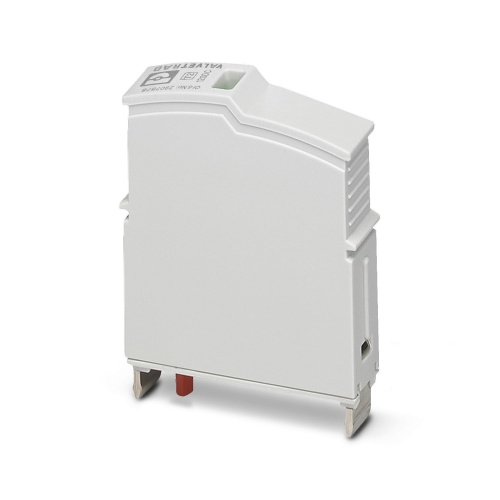

Phoenix Contact 2907878 Type 2 surge protection plug VAL-SEC-T2-120DC-P
Normally In Stock
Code: 71963
VAL-SEC-T2-120DC-P Phoenix 2907878 Replacement plug 100 VDC - 120 VDC pluggable Type 2 surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$119.89
Sale Price
$99.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2907878 A replacement plug is available for surge protective devices in the VALVETRAB SEC product range designed specifically for use with DC power sources.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Max Discharge Capacity
100 A (150 V AC)
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
150 Volt
Nominal Discharge Current
20 Ka
Surge Protector Line Voltage
100 Volt - 120 Volt
Component
Surge Protection Plug
Features
Extremely narrow design, just 12 mm per position
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection

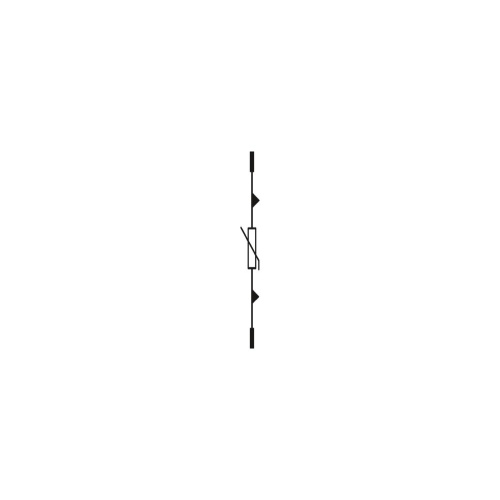

Varistor arrester with a low leakage current
Downloads
Phoenix 2907878 CAD data International.dxfPhoenix 2907878 CAD data International.pdfPhoenix 2907878 CAD data International.stpPhoenix 2907878 Flyer English-2.pdfPhoenix 2907878 Flyer English.pdfPhoenix 2907878 Manufacturers declaration International.pdfPhoenix 2907878 Package Slip International.pdfPhoenix 2907878 Surge Protection English.pdfPhoenix 2907878 Tender Text English.zip
