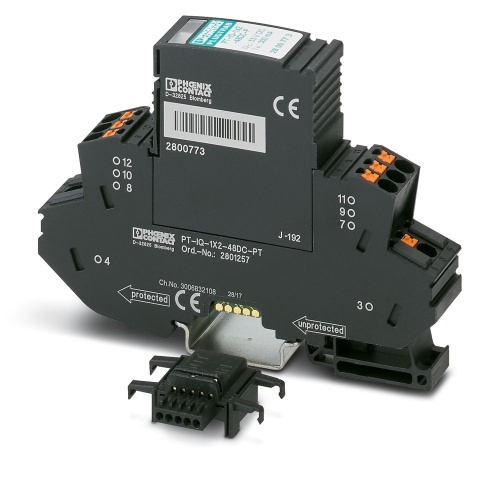

Phoenix Contact 2801257 Surge protection device PT-IQ-1X2-48DC-PT
Normally In Stock
Code: 71631
PT-IQ-1X2-48DC-PT Phoenix 2801257 Surge protection for measurement and control technology 48 VDC Push-in connection,DIN rail NS35 Surge protection device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$278.20
Sale Price
$231.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

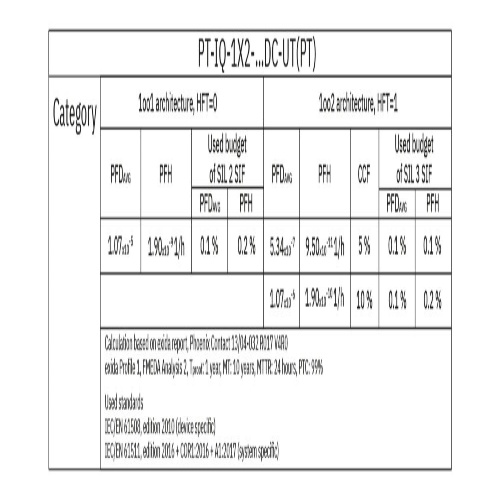

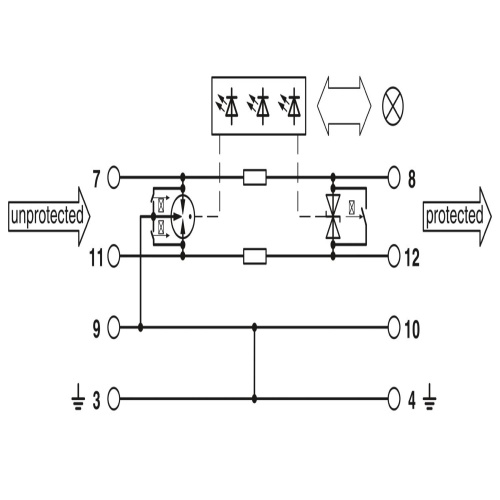

Phoenix Contact 2801257 A surge protection system can be designed using a combination of a protective plug and a base element that incorporates a multi-stage status indicator, suitable for use in 2-wire floating signal circuits, particularly in applications requiring SIL 3 safety levels.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Max Discharge Capacity
50 A
Arrester Class according to IEC
PV I - II
Arrester Class according to IEC
PV T1 - T2
Impulse Discharge Current
6.25 Ka
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
48 Volt
Surge Protector Type
PV Arrester
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Predictive monitoring with 3-stage LED display
Integration of the status message into the system controller via group remote signaling
Install quickly and error-free with DIN rail connectors
Maximum ease of maintenance, thanks to the 2-piece design
Maximum protection for MCR applications with high discharge capacity
Downloads
Phoenix 2801257 CAD data International.dxfPhoenix 2801257 CAD data International.pdfPhoenix 2801257 CAD data International.stpPhoenix 2801257 Flyer English-2.pdfPhoenix 2801257 Flyer English.pdfPhoenix 2801257 Manufacturers declaration English.pdfPhoenix 2801257 Manufacturers declaration International.pdfPhoenix 2801257 Package Slip International.pdfPhoenix 2801257 Product Information English.pdfPhoenix 2801257 Software International.zipPhoenix 2801257 Surge Protection English.pdfPhoenix 2801257 Tender Text English.zip
