Code: 715256

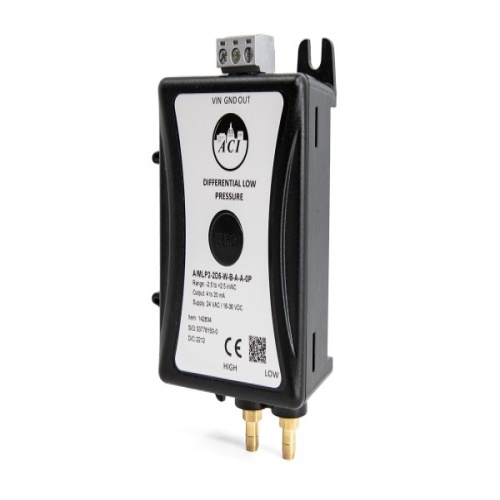

ACI 148673 MLP2 Differential Pressure - A/MLP2-001-W-U-A-A-3P
Normally In Stock
ACI 148673 Differential Pressure, Panel Mount, 1.00 inWC, UniDirectional, +/- 0.5% FSO, 4-20mA, 3 PT NIST
Condition: New
Usually ships Same Day or Next Day$230.40
Sale Price
$192.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
ACI 148673 Differential Pressure, Panel Mount, 1.00 inWC, UniDirectional, +/- 0.5% FSO, 4-20mA, 3 PT NIST
Specifications
Manufacturer
ACI
Component
Pressure
(Instrument-Sensor) Output Signal Range
4 - 20 mAmp
(Instrument-Sensor) Type
Differential Pressure
(Instrument-Sensor) Span
0 - 1" W.C.
(Instrument-Sensor) Measurement Accuracy
0.50%
Features
The MLP2 Series Low Differential Pressure transmitters are designed for use in OEM or highdensity panel mounting applications
Key installation features include an integral 35 mm DINrail mounting foot, vertically orientated wiring and pressure connections, and a pushbuttonzero function conveniently located on the front cover
The MLP2 offers two options for DIN Railmounting
rear and side mount
The rear DIN rail mount is integrated into the enclosure
Theside mount adapter is included with the package, and can easily be attached
The side mountoffers a much thinner profile for higher density panels
The MLP2 incorporates a high accuracy,piezoresistive, silicon sensing element which senses differential pressure and provides alinear 4 to 20 mA or DC voltage output equal to the specified pressure range
This technologyreduces warmup shift while also reducing the effect of package stress for increased long termstability
In addition, the unit contains a de-pluggable terminal block that can be removed for ease of installation
This unit must be ordered witha single uni or bi-directional pressure range and output signal from +/- 0.1” of water column to a maximum pressure of +/- 40” of water columndepending on your application
All MLP2 Series pressure transmitters are calibrated using NIST Certified equipment
Optional 3 or 5 point NISTCertificates are available and must be specified when placing your order
