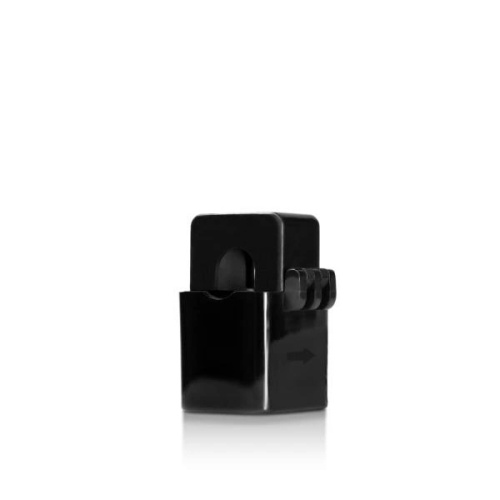

ACI 148160 Current Transformer, 30A, Hinged Split Core, 0.4" Aperture, 333mV Output, 2.5m Leads
Normally In Stock
Code: 715151
ACI 148160 Current Transformer, 30A, Hinged Split Core, 0.4" Aperture, 333mV Output, 2.5m Leads, ACUCT Hinged Split Core
Condition: New
Usually ships Same Day or Next Day$46.08
Sale Price
$38.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ACI 148160 Current Transformer, 30A, Hinged Split Core, 0.4" Aperture, 333mV Output, 2.5m Leads, ACUCT Hinged Split Core
Specifications
Component
Current Transformer
Manufacturer
ACI
(Instrument-Sensor) Type
Hinged Split Core
Features
The Hinged Split-Core Current Transformers are designed to convert an AC operating current into a low voltage AC millivolt signal for use with microprocessor-based circuits that require maximum accuracy and precision
These ultra-compact and light-weight hinged split-core current transformers are designed for installation on branch circuits within the electrical panel
The Hinged Split-Core CT Series is ideal for easy installation without disconnecting cables
Hinged Split-Core CTs come standard unterminated stripped and tinned lead wires for easy connection to any of the Single or 3 Phase ACI power meter
CT models listed here are compatible with the ACI KW350-P1-D-S-SC, KW320-P1-D-W-SC-XX, KW320-P1-D-W-SC-PC, KW1850-P1-D-W, and KW1850-P1-D-S Power Meters where typical power measurements are required
For best accuracy, CTs should be selected based upon the size of the conductors being monitored by selecting the proper window size and referencing the expected maximum and minimum currents for the targeted application
The acceptable Measurement Current Range is referenced in the ordering grid table
Please contact ACI for more information regarding the Hinged Split-Core Current Transformers.
Code: 715151
ACI 148160 Current Transformer, 30A, Hinged Split Core, 0.4" Aperture, 333mV Output, 2.5m Leads
$46.08
Sale Price
$38.40
