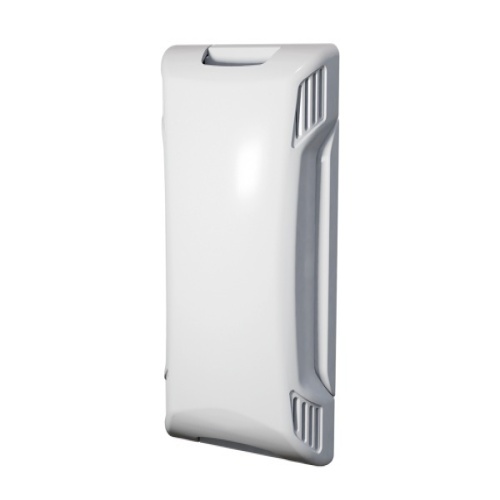

ACI 149090 Carbon Dioxide Sensor, Room, 0-2000 PPM, (0-5V, 0-10V, 4-20mA), Temp (10K Type II), Setpoint (0-5K), Cool/Warm Sticker, Override - A/CO2-R2SO-CP-A16-G5
Normally In Stock
Code: 715107
ACI 149090 Carbon Dioxide Sensor, Room, 0-2000 PPM, (0-5V, 0-10V, 4-20mA), Temp (10K Type II), Setpoint (0-5K), Cool/Warm Sticker, Override - ACI CO2 Room
Condition: New
Usually ships Same Day or Next Day$332.84
Sale Price
$277.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
ACI 149090 Carbon Dioxide Sensor, Room, 0-2000 PPM, (0-5V, 0-10V, 4-20mA), Temp (10K Type II), Setpoint (0-5K), Cool/Warm Sticker, Override - ACI CO2 Room
Specifications
Manufacturer
ACI
Component
Gas
(Instrument-Sensor) Type
Carbon Dioxide
Features
The ACI Carbon Dioxide Room Series (A/CO2-R2) monitors the carbon dioxide (CO2) levels in commercial, school, and office-type environments
The concentration of CO2 is a strong indication of the overall indoor air quality
The A/CO2 Series is based on a single beam, nondispersive infrared technology and is a cost-efficient solution for measuring carbon dioxide levels for building climate control
In addition, ABC software eliminates the need for manual calibration
Carbon Dioxide concentration is measured up to 2,000 ppm and is converted into proportional analog outputs
The factory default outputs are 0-10 VDC (Output 1) and 4-20 mA (Output 2), whereas 0-5 VDC is field selectable via integral dip switches
Thermistor temperature outputs, along with setpoint and override, are available as options for this configuration as well
Please see the order grid for the available sensor options
The A/CO2-R2 Series provides data which can be used in conjunction with a Building Automation System or Demand Control Ventilation to decrease energy consumption while creating a healthier indoor climate.
Code: 715107
ACI 149090 Carbon Dioxide Sensor, Room, 0-2000 PPM, (0-5V, 0-10V, 4-20mA), Temp (10K Type II), Setpoint (0-5K), Cool/Warm Sticker, Override - A/CO2-R2SO-CP-A16-G5
