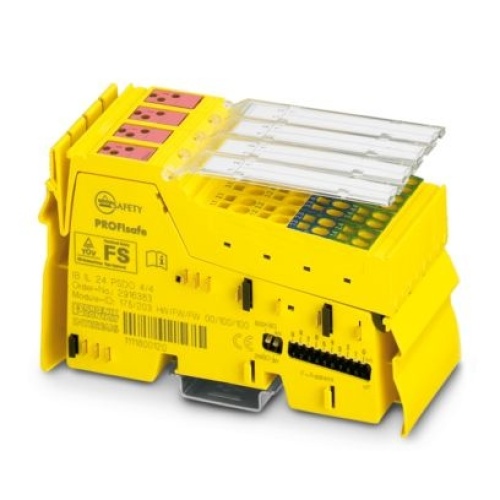

IB IL 24 PSDO 4/4-PAC Phoenix Contact 2916493 IO components, safety related INTERBUS Digital Output,Bus
IB IL 24 PSDO 4/4-PAC Phoenix 2916493 IO components, safety related INTERBUS Digital Output,Bus Inline local bus 500 kbps / 2 Mbps Inline data jumper,Spring-cage connection PLC & IO
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $916.58
Sale Price:
$626.67
Safety digital output module, IP20 degree of protection, for the SafetyBridge-, INTERBUS-Safety- and the PROFIsafe system. It has four safe digital outputs which include one positive and one negative switching output each depending on the parameterization.
| Specifications | |
| Non-matching | Non-matching |
| PLC & IO Network Interface | Inline local bus |
| PLC & IO Degree of Protection | IP20 |
| PLC & IO Connection Method | Inline data jumper |
| PLC & IO Connection Method | Spring-cage connection |
| PLC & IO Transmission Speed | 500 kbps - 2 Mbps |
| PLC & IO Number of Digital Outputs | 4 |
| PLC & IO Application | PROFIsafe |
| PLC & IO Type | INTERBUS |
| PLC & IO Application | SafetyBridge |
| Manufacturer | Phoenix Contact |
| Component | I/O Component |
- SIL 3 in accordance with EN IEC 62061
- PL e in accordance with EN ISO 13849-1
- SIL 3 according to IEC/EN 61508
