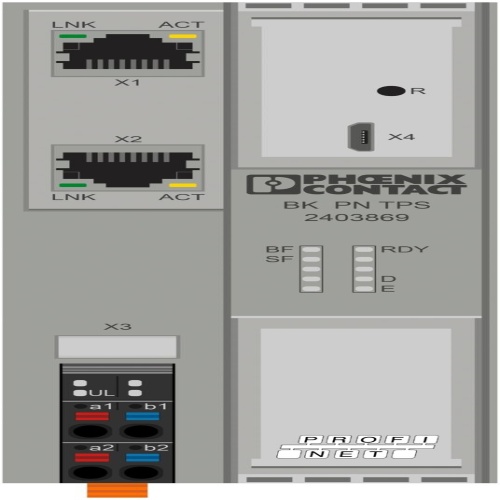

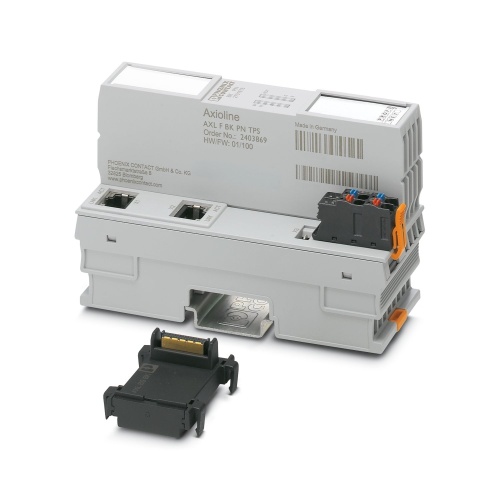

Phoenix Contact 2403869 Bus coupler AXL F BK PN TPS
Normally In Stock
Code: 71367
AXL F BK PN TPS Phoenix 2403869 I/O component Axioline Bus Axioline F connector 100 Mbps Push-in connection,RJ45 jack,Bus base module,USB type C PLC & IO
Condition: New
Usually ships Same Day or Next Day$489.48
Sale Price
$407.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2403869 The Axioline F is a bus coupler that utilizes PROFINET technology, featuring an RJ45 jack for connectivity, with a local bus transmission speed of 100 Mbps and a degree of protection of IP20. This product includes both the bus base module and an Axioline F connector.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
RJ45 Jack
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Connection Method
USB Type C
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Supports PROFIenergy
Conformance with PROFINET specification V2.3
Supports PROFIsafe
2 Ethernet ports (with integrated switch)
Supports PROFINET S2 system redundancy (firmware version 1.30 or later)
PROFINET RT and IRT
Minimum cycle time of PROFINET for RT and IRT is 250 μs
Runtime in bus coupler is negligible (almost 0 µs)
Typical cycle time of the Axioline F local bus is around 10 μs
Web-based management
Supports the operation of Axioline Smart Elements
Supports passive Smart Elements (firmware version 1.30 or later)
Supports IOL-CONF (firmware version 1.30 and later)
Safe analog value processing with SAFE AI and other components
