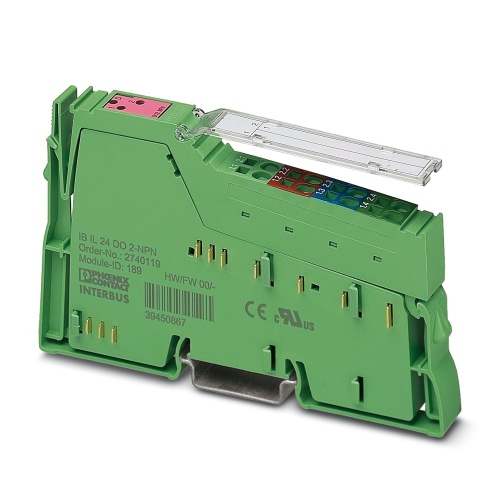

Phoenix Contact 2861496 Digital module IB IL 24 DO 2-NPN-PAC
Normally In Stock
Code: 71324
IB IL 24 DO 2-NPN-PAC Phoenix 2861496 I/O component Inline Digital Output,Bus,Terminal Inline local bus 500 kbps Inline data jumper,Spring-cage connection PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$104.44
Sale Price
$87.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2861496 The device features a digital output terminal with two NPN digital outputs that operate at 24V DC. It uses a 4-conductor connection technology and transmits data at speeds of up to 500 kbps over the local bus. The device is protected by an IP20 rating, which includes an inline connector and a labeling field.
Specifications
PLC & IO Network Interface
Inline Local Bus
PLC & IO Transmission Speed
500 Kbps
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Inline Data Jumper
PLC & IO Connection Method
Spring-Cage Connection
PLC & IO Type
Inline
PLC & IO Number of Digital Outputs
2
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Total current of the terminal: 1 A

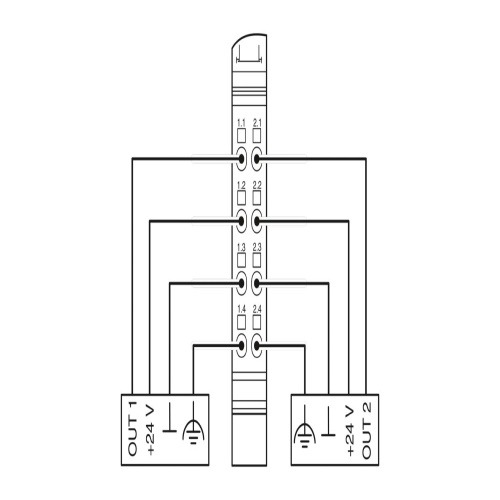

Connection of actuators in 2-, 3-, and 4-conductor technology
Nominal current per output: 500 mA
2 digital outputs, npn-wired
Short-circuit and overload-protected outputs
Diagnostic and status indicators
Downloads
Phoenix 2861496 Application Note English.pdfPhoenix 2861496 CAD data International.dxfPhoenix 2861496 CAD data International.pdfPhoenix 2861496 CAD data International.stpPhoenix 2861496 Data Sheet English.pdfPhoenix 2861496 EPLAN Macro International.z13Phoenix 2861496 EPLAN Macro International.zipPhoenix 2861496 Manual English.pdfPhoenix 2861496 Manufacturers declaration English.pdfPhoenix 2861496 Manufacturers declaration International-2.pdfPhoenix 2861496 Manufacturers declaration International.pdfPhoenix 2861496 Package Slip English.pdfPhoenix 2861496 Package Slip International-2.pdfPhoenix 2861496 Package Slip International-3.pdfPhoenix 2861496 Package Slip International.pdfPhoenix 2861496 Tender Text English.zipPhoenix 2861496 Various English.pdf
