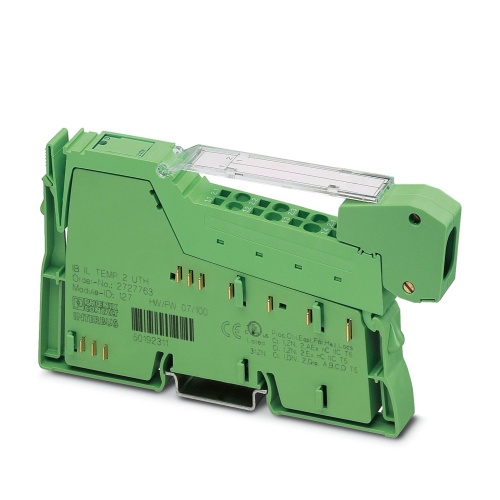

Phoenix Contact 2861386 Temperature module IB IL TEMP 2 UTH-PAC
Normally In Stock
Code: 71323
IB IL TEMP 2 UTH-PAC Phoenix 2861386 I/O component Inline Input,Bus,Terminal Inline local bus 500 kbps Inline data jumper,Inline connector PLC & IO
Condition: New
Usually ships Same Day or Next Day$570.14
Sale Price
$475.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2861386 The device features an inline temperature measurement terminal with two analog input options for thermocouples or linear voltage signals, utilizing a 2-conductor connection technology. It transmits data at a speed of 500 kilobits per second over the local bus, is protected by an IP20 rating, and includes an inline connector and labeling field.
Specifications
PLC & IO Network Interface
Inline Local Bus
PLC & IO Transmission Speed
500 Kbps
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Inline Data Jumper
PLC & IO Connection Method
Inline Connector
PLC & IO Type
Inline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Internal detection and compensation of cold junction temperature (can be parameterized)
1 input for an external cold junction, Pt 1000 or Ni 1000
The channels are parameterized independently of one another via the bus system

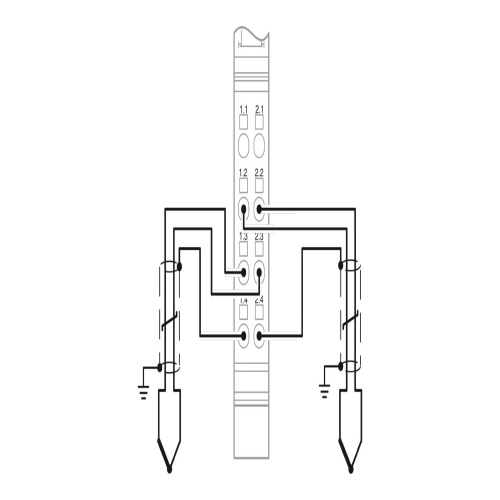

2 differential inputs for thermocouples or linear voltage
Absolute and differential temperature measurement (can be parameterized)
Pt 1000 sensor in the vicinity of the connection terminal blocks of the thermocouple inputs for internal measurement of the cold junction temperature
Measured values can be represented in three different formats
Downloads
Phoenix 2861386 Application Note English-2.pdfPhoenix 2861386 Application Note English-3.pdfPhoenix 2861386 Application Note English.pdfPhoenix 2861386 Application Note International.pdfPhoenix 2861386 CAD data International.dxfPhoenix 2861386 CAD data International.pdfPhoenix 2861386 CAD data International.stpPhoenix 2861386 CAD data International.zipPhoenix 2861386 Configuration software International.zipPhoenix 2861386 Data Sheet English.pdfPhoenix 2861386 EPLAN Macro International.z13Phoenix 2861386 Manual English.pdfPhoenix 2861386 Manufacturer's declaration International-2.pdfPhoenix 2861386 Manufacturer's declaration International.pdfPhoenix 2861386 Manufacturers declaration International-2.pdfPhoenix 2861386 Manufacturers declaration International.pdfPhoenix 2861386 Package Slip International.pdfPhoenix 2861386 Tender Text English.zipPhoenix 2861386 Various English.pdf
