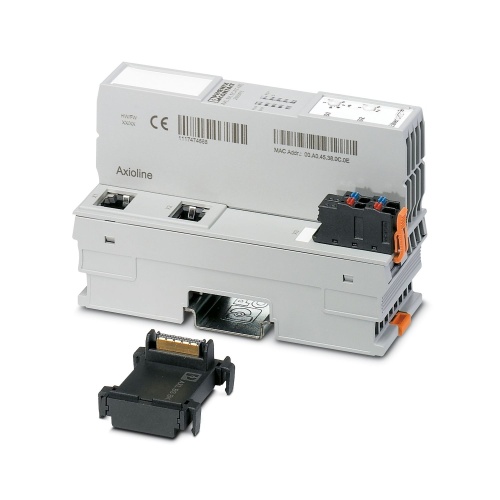

Phoenix Contact 2688899 Bus coupler AXL F BK EC
Normally In Stock
Code: 71303
AXL F BK EC Phoenix 2688899 I/O component Axioline Bus Axioline F connector 100 Mbps Push-in connection,RJ45 jack,Bus base module,USB type C (as of HW 05) PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$810.05
Sale Price
$675.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2688899 The Axioline F device is a bus coupler that includes an RJ45 jack and features Ethernet communication capabilities with an Ethernet CAT standard, operating at a local transmission speed of 100 Mbps, with a level of protection in accordance with the IP20 standard, and comes equipped with both the bus base module and an Axioline F connector.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
RJ45 Jack
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Bus Base Module
PLC & IO Connection Method
Push-In Connection
PLC & IO Connection Method
USB Type C (As Of HW 05)
PLC & IO Network Interface
Axioline F Local Bus
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Station mapped as a modular EtherCAT® device using a modular device profile (MDP)
Rotary encoding switch
Automatic addressing
2 Ethernet ports (with integrated switch)
Station can be mapped as a block device
Acyclic data communication (mailbox protocols)
Cyclic data communication
Firmware can be updated
Typical cycle time of the Axioline F local bus is around 10 μs
Runtime in bus coupler is negligible (almost 0 µs)
Supports the operation of Axioline Smart Elements
Supports passive Smart Elements (firmware version 1.30 or later)
Supports IOL-CONF (firmware version 1.30 and later)
Supports Smart Elements for use in an FSoE system (firmware version 1.31 or later)
