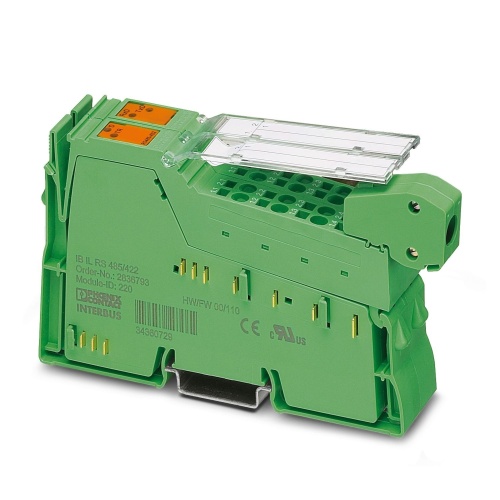

Phoenix Contact 2861933 Communication module IB IL RS 485/422-PAC
Normally In Stock
Code: 71294
IB IL RS 485/422-PAC Phoenix 2861933 I/O component Inline Input,Output,Terminal RS-422/-485 500 kbps Spring-cage connection,Inline data jumper PLC & IO
Condition: New
Usually ships Same Day or Next Day$815.71
Sale Price
$679.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2861933 Inline communication terminals typically operate on RS-485 or RS-422 interfaces, allowing for simultaneous operation with other devices. They enable communication through a Personal Computer (PCP) interface at speeds of up to 500 kilobits per second over the local bus. These units are protected by an IP20 rating and feature inline connectors as well as marking fields.
Specifications
PLC & IO Network Interface
Inline Local Bus
PLC & IO Transmission Speed
500 Kbps
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Inline Data Jumper
PLC & IO Connection Method
Spring-Cage Connection
PLC & IO Type
Inline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Number of data bits, stop bits and parity can be set
Various protocols supported
Transmission speed can be set up to 38400 bps

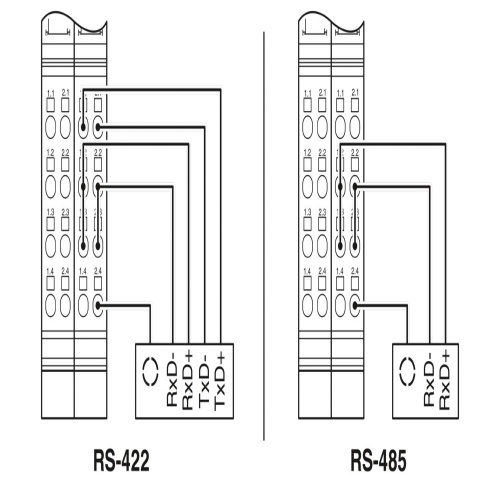

1 serial input and output channel as RS-485 or RS-422 version
4 kbyte receive buffer and 1 kbyte transmit buffer
Parameterization and data exchange via PCP
Downloads
Phoenix 2861933 Application Note English-2.pdfPhoenix 2861933 Application Note English.pdfPhoenix 2861933 CAD data International.dxfPhoenix 2861933 CAD data International.zipPhoenix 2861933 Data Sheet English.pdfPhoenix 2861933 Function Module International.msiPhoenix 2861933 Manual English.pdfPhoenix 2861933 Manufacturers declaration International-2.pdfPhoenix 2861933 Manufacturers declaration International.pdfPhoenix 2861933 Package Slip International.pdfPhoenix 2861933 Tender Text English.zipPhoenix 2861933 Various English.pdf
