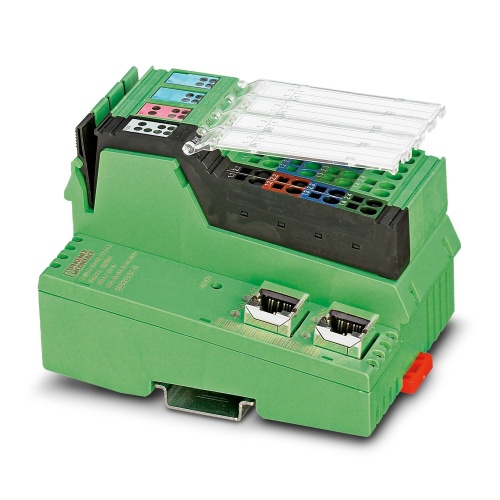

Phoenix Contact 2692380 Bus coupler IL S3 BK DI8 DO4 2TX-PAC
Normally In Stock
Code: 71282
IL S3 BK DI8 DO4 2TX-PAC Phoenix 2692380 I/O component Inline Digital Input,Digital Output,Bus Sercos 500 kbps / 2 Mbps RJ45 jack,Inline data jumper,Inline connector PLC & IO
Condition: New
Usually ships Same Day or Next Day$999.16
Sale Price
$832.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

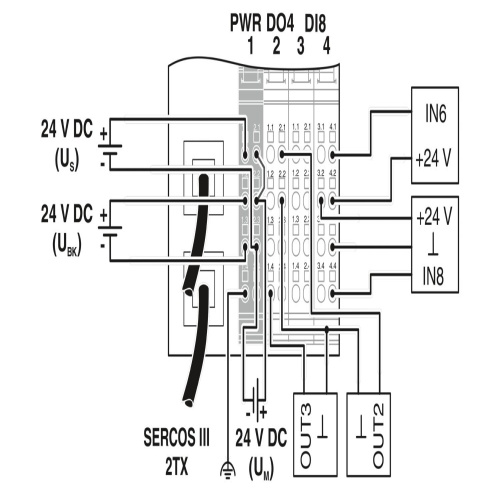

Phoenix Contact 2692380 The device features a Bus coupler with Sercos technology and is equipped with an RJ45 jack for connectivity. It has digital inputs and outputs that utilize 3-conductor connections, with the inputs supporting 8 channels of 24V DC power and 4 channels of digital output at 500mA capacity. The local bus operates at speeds of 500 kbps to 2 Mbps, while the device is protected by an IP20 rating, encompassing inline connectors, marking fields, and an end plate.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Inline Data Jumper
PLC & IO Connection Method
RJ45 Jack
PLC & IO Connection Method
Inline Connector
PLC & IO Number of Digital Inputs
8
PLC & IO Network Interface
Sercos
PLC & IO Transmission Speed
500 Kbps - 2 Mbps
PLC & IO Type
Inline
PLC & IO Number of Digital Outputs
4
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Minimum Sercos cycle time of 250 µs
Automatic detection of the transmission speed in the local bus (500 kbps or 2 Mbps)
8 digital inputs, 4 digital outputs (on-board)
2 Ethernet ports
FSP-IO (Function Specific Profile-IO) for modular I/O devices
Maximum of 6 realtime connections
Hot plugging of participants in Sercos network
Diagnostics trace
Internet Protocol Services (IPS)
Sercos specification V1.3.1
Sercos diagnostic LED S and communication phase LED CP
