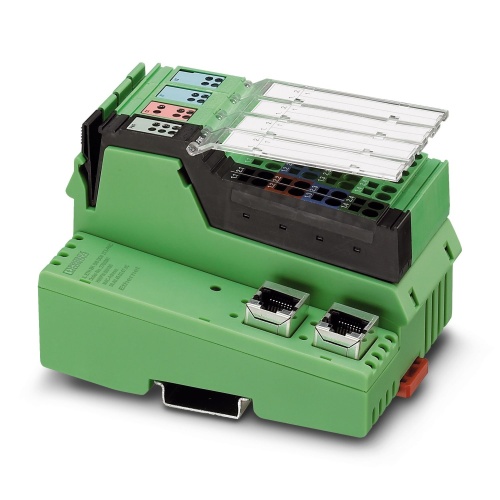

Phoenix Contact 2703994 Bus coupler IL PN BK DI8 DO4 2TX-PAC
Normally In Stock
Code: 71263
IL PN BK DI8 DO4 2TX-PAC Phoenix 2703994 I/O component I/O,Input,Output,Bus PROFINET 100 Mbps RJ45 socket, auto negotiation,Inline data jumper,Spring-cage connection,Inline connector PLC & IO
Condition: New
Usually ships Same Day or Next Day$787.48
Sale Price
$656.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

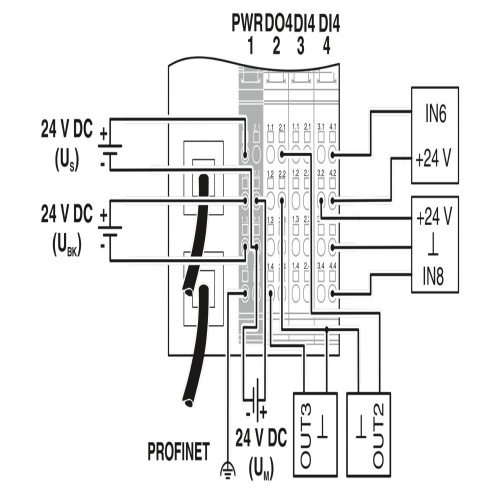

Phoenix Contact 2703994 The device features a bus coupler and RJ45 jack for connectivity options. It includes eight digital inputs and four digital outputs, both operating at 24V DC with a maximum current draw of 500mA through three-conductor connections. The local bus transmission speed is 500 kbps to 2 Mbps, while the device is protected by an IP20 rating.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Inline Data Jumper
PLC & IO Connection Method
Inline Connector
PLC & IO Number of Digital Inputs
8
PLC & IO Network Interface
PROFINET
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Spring-Cage Connection
PLC & IO Connection Method
RJ45 Socket
PLC & IO Connection Method
Auto Negotiation
PLC & IO Number of Digital Outputs
4
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Connection to the PROFINET network via 8-pos. RJ45 jack
Transmission speeds 100 Mbps
IP parameter setting via PROFINET controller
2x Ethernet twisted pair according to 802.3 with auto negotiation and auto crossover
Electrical isolation between Ethernet interface and logic
Ethernet TCP/IP (100 Base-TX, management via SNMP)
Connection of up to 61 other Inline devices
Connection of a maximum of 16 PCP devices
Supported protocols: SNMPv1, TFTP, PROFINET, LLDP, ICMP, and MRP (from firmware 3.21)
PROFINET IRT (firmware 4.00 or later)
Conformance with PROFINET specification V2.3 (firmware 4.00 or later)
PROFINET Netload Class III (from firmware 4.00)
8 digital inputs, 4 digital outputs (on-board)
Automatic detection of the transmission speed in the local bus (500 kbps or 2 Mbps)
Approved for PROFIsafe applications
