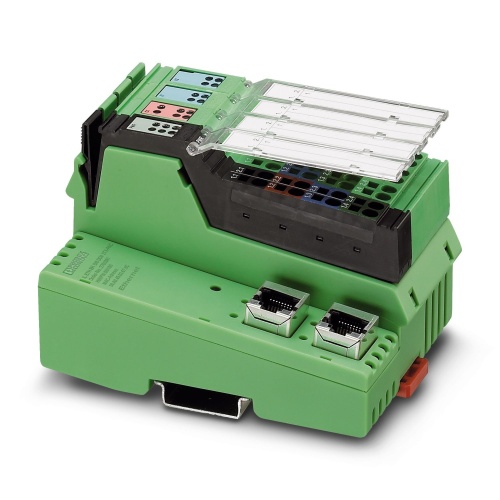

Phoenix Contact 2703981 Bus coupler IL ETH BK DI8 DO4 2TX-PAC
Normally In Stock
Code: 71242
IL ETH BK DI8 DO4 2TX-PAC Phoenix 2703981 I/O component Inline Digital Input,Digital Output,Bus Modbus/TCP (UDP) 10/100 Mbps RJ45 jack,Inline data jumper,Inline connector PLC & IO
Condition: New
Usually ships Same Day or Next Day$774.77
Sale Price
$645.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2703981 The device features a range of connectivity options including inline, Bus coupler, Modbus/TCP(UDP), RJ45 jack, and offers 8 digital inputs and 4 digital outputs, all powered by 24V DC with an output current capacity of up to 500mA. The connection technology is 3-conductor, while the local bus transmission speed is 500 kbps / 2 Mbps. The device is also protected by an IP20 rating, which includes inline connectors and marking fields.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Inline Data Jumper
PLC & IO Connection Method
RJ45 Jack
PLC & IO Connection Method
Inline Connector
PLC & IO Number of Digital Inputs
8
PLC & IO Transmission Speed
10-100 Mbps
PLC & IO Network Interface
Modbus-TCP (UDP)
PLC & IO Type
Inline
PLC & IO Number of Digital Outputs
4
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Transmission speed of 10 Mbps and 100 Mbps
Auto negotiation
Autocrossing
2 Ethernet ports (with integrated switch)
Automatic detection of the transmission speed in the local bus (500 kbps or 2 Mbps)
8 digital inputs, 4 digital outputs (on-board)
Data exchange via OPC server supported
Software interfaces for access via TCP/IP: Device Driver Interface (DDI) and High-Level Language Fieldbus Interface (HFI)
Web-based management
