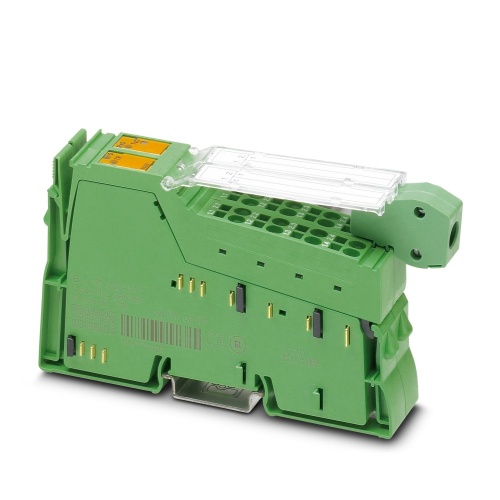

Phoenix Contact 2861357 Communication module IB IL RS 232-PAC
Normally In Stock
Code: 71231
IB IL RS 232-PAC Phoenix 2861357 I/O component Inline Input,Output,Terminal RS-232 500 kbps Spring-cage connection,Inline data jumper PLC & IO
Condition: New
Usually ships within 7-14 days. Call for ship time.$786.06
Sale Price
$655.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2861357 The inline communication terminal features an interface based on RS-232 standards, allowing for communication with a PC via a protocol called PCP. It transmits data at speeds of up to 500 kilobits per second over the local bus, while offering protection from dust and moisture in accordance with the IP20 rating, accompanied by inline connectors and clear marking fields.
Specifications
PLC & IO Network Interface
Inline Local Bus
PLC & IO Transmission Speed
500 Kbps
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Inline Data Jumper
PLC & IO Connection Method
Spring-Cage Connection
PLC & IO Type
Inline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Number of data bits, stop bits and parity can be set
Various protocols supported
Transmission speed can be set up to 38400 bps
One serial RS-232 input and output channel
4 kbyte receive buffer and 1 kbyte transmit buffer
Parameterization and data exchange via PCP
Downloads
Phoenix 2861357 Application Note English-2.pdfPhoenix 2861357 Application Note English.pdfPhoenix 2861357 CAD data International.dxfPhoenix 2861357 CAD data International.pdfPhoenix 2861357 CAD data International.stpPhoenix 2861357 CAD data International.zipPhoenix 2861357 Data Sheet English.pdfPhoenix 2861357 EPLAN Macro International.z13Phoenix 2861357 EPLAN Macro International.zipPhoenix 2861357 Function Module International.msiPhoenix 2861357 Manual English.pdfPhoenix 2861357 Manufacturers declaration International-2.pdfPhoenix 2861357 Manufacturers declaration International.pdfPhoenix 2861357 Package Slip International.pdfPhoenix 2861357 Tender Text English.zipPhoenix 2861357 Various English.pdf
