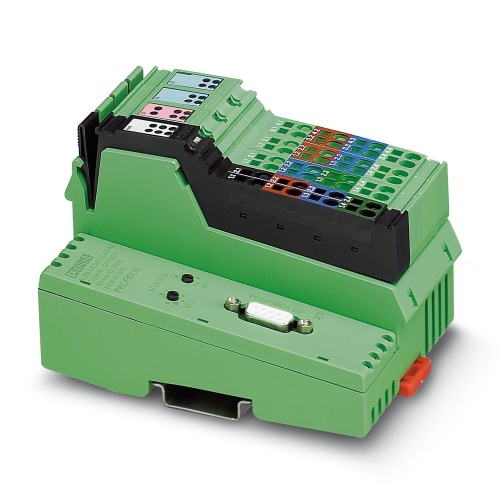

Phoenix Contact 2878696 Bus coupler IL MOD BK DI8 DO4-PAC
Normally In Stock
Code: 71212
IL MOD BK DI8 DO4-PAC Phoenix 2878696 I/O component Inline Digital Input,Digital Output,Bus Modbus/RTU 1.2 kBit/s ... 115.2 kBit/s D-SUB-9 female connector,Inline data jumper,Inline connector PLC & IO
Condition: New
Usually ships Same Day or Next Day$646.36
Sale Price
$538.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2878696 The device features a Bus coupler, Modbus/RTU capabilities, and is equipped with a D-SUB-9 female connector. It boasts digital inputs and outputs, with eight input channels and four output channels that operate at 24V DC and have a maximum current rating of 500 mA per channel. The local bus transmission speed is 500 kbps to 2 Mbps, and the device has an IP20 degree of protection, which includes inline connectors, marking fields, and an end plate.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Connection Method
Inline Data Jumper
PLC & IO Connection Method
Inline Connector
PLC & IO Number of Digital Inputs
8
PLC & IO Connection Method
D-SUB-9 Female Connector
PLC & IO Network Interface
Modbus-RTU
PLC & IO Type
Inline
PLC & IO Number of Digital Outputs
4
Manufacturer
Phoenix Contact
PLC & IO Transmission Speed
1.2 Kbps ... 115.2 Kbps
Component
I/O Component
Features
Data transmission speed in Modbus of 1.2 kbps to 115.2 kbps (configurable)
Electrical isolation between Modbus interface and logic
8 digital inputs, 4 digital outputs (on-board)
Modbus connection via 9-pos. D-SUB socket

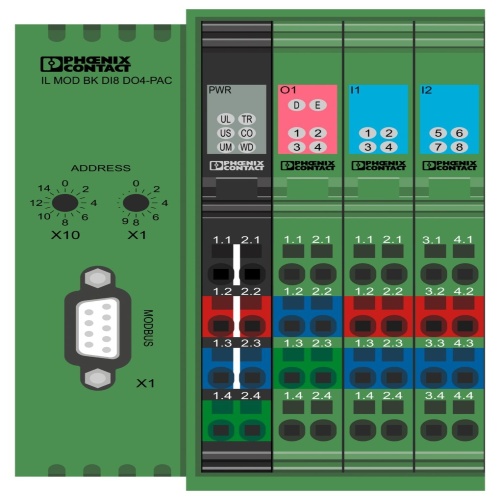

Rotary coding switches for setting the Modbus address and for configuration
Supported Modbus addresses from 1 to 99
Automatic detection of the transmission speed in the local bus (500 kbps or 2 Mbps)
Shipbuilding and UL approvals
