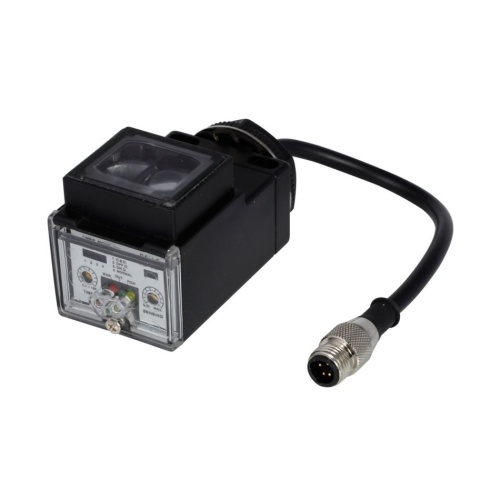

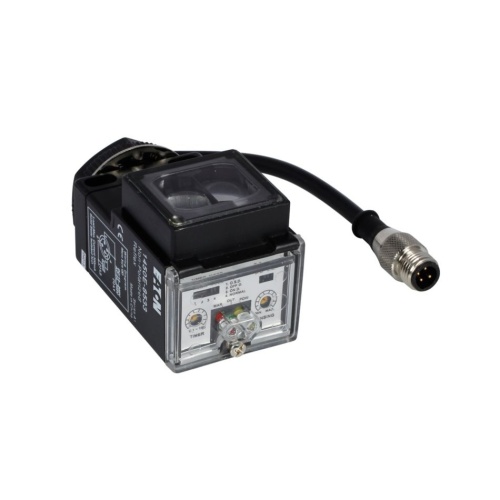

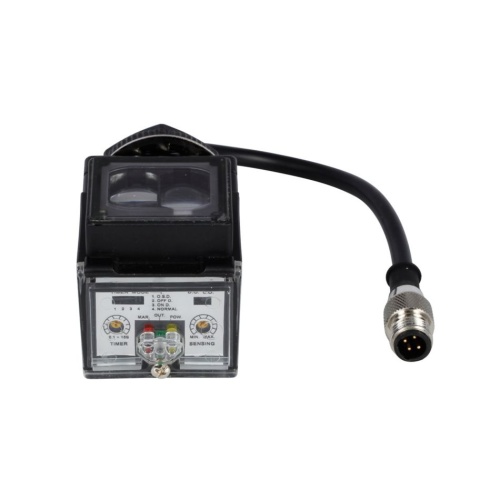

Eaton 1450E-8533 - Photoelectric Sensor, Retroreflective, 300 mA, 24-240 Vac, 12-240 Vdc
Normally In Stock
Code: 711738
Eaton 1450E-8533 - Photoelectric Sensor, Retroreflective, 300 mA, 24-240 Vac, 12-240 Vdc
Condition: New
Usually ships Same Day or Next Day$494.64
Sale Price
$412.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton 1450E-8533 - Photoelectric Sensor, Retroreflective, Forward Viewing, Output (green), power (yellow), alignment (red), Dual key micro (pigtail), 300 mA at 240 Vac/dc, 4 pin, Time delayed, SPNO SSR, 24-240 Vac, 12-240 Vdc
Specifications
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) IP Protection
IP69K
Component
Photoelectric Sensor
Manufacturer
Eaton
(Instrument-Sensor) Type
Retroreflective
Features
High optical performance models including a 500 ft (152 m) thru-beam and a 10 ft (3 m) diffuse reflective unit
Output options include a 3 A SPDT relay
All units offer light/dark selection
Logic options include ON-delay, OFF-delay, ON/OFF-delay and oneshot delay
Fiber optic sensors operate in thru-beam or diffuse reflective mode depending on the fiber optic cable selected
Fully potted construction for use in areas subject to washdown, high shock and/or vibration
Choice of pre-wired power cable, built-in miniconnector, built-in microconnector and pigtail micro-connector versions. Standard pre-wired cable length is 6 ft (2 m)
Variety of brackets available including ball swivel
