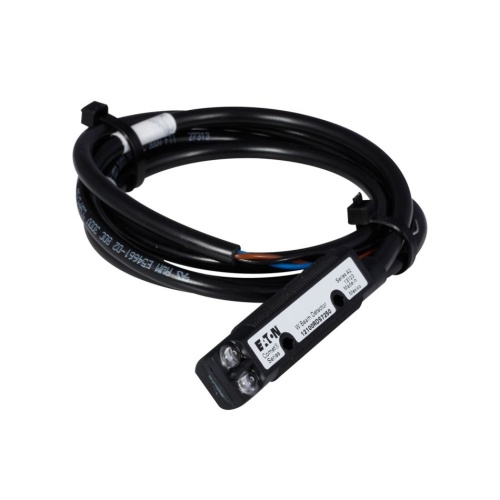

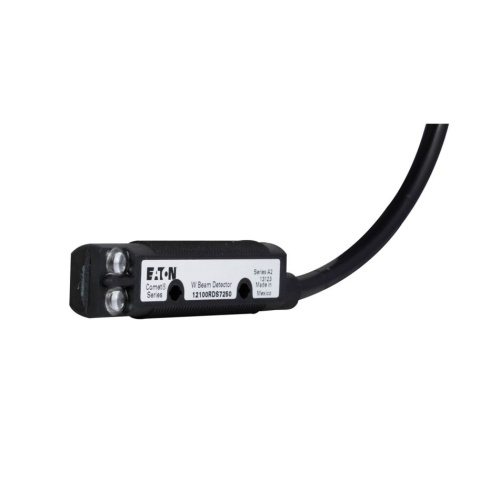

Eaton 12100RDS7250 - Photoelectric Sensor, Through beam, 300 mA, 20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN)
Normally In Stock
Code: 711727
Eaton 12100RDS7250 - Photoelectric Sensor, Through beam, 300 mA, 20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN)
Condition: New
Usually ships Same Day or Next Day$438.18
Sale Price
$365.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton 12100RDS7250 - Comet 18mm tubular photoelectric sensor,Through Beam, Right Angle, Output ON, 6.6 ft, 300 mA AC/DC at 20-264 Vac/15-30 Vdc, PVC, AC: L1 switched, DC: NPN open collector, 15-30 Vdc (NPN), 20-264 Vac 50/60 Hz
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 1
(Instrument-Sensor) Type
Through Beam
Component
Photoelectric Sensor
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) Cable Length
79.2 Ft
Features
Eaton's Comet photoelectric sensors series is a complete line of high performance, 18 mm tubular devices with a variety of models and modes to solve virtually any sensing problem.
The sensors are available in thrubeam, reflex, polarized reflex, diffuse reflective, focused diffuse reflective, wide angle diffuse reflective, Perfect ProxR, fine spot Perfect ProxR and fiber optic sensing.
Perfect ProxR is one of the most powerful problem-solving sensors available
These sensors can reliably detect targets of different color, reflectance, contrast or surface shape at the same range, while ignoring background objects just a fraction of an inch away.
